Feelworld Monitor FW703 7" SDI monitor

Feelworld Monitor FW703 7" SDI monitor

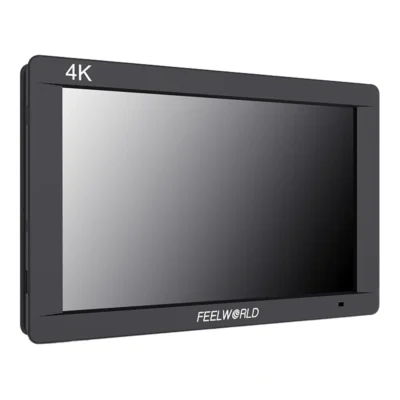

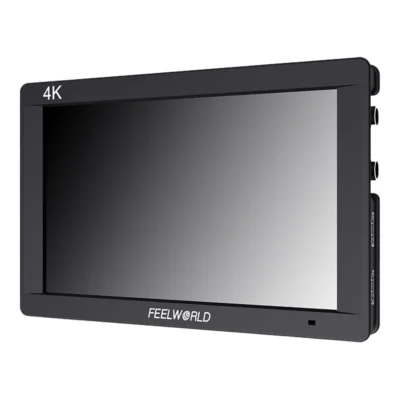

A 7 inch camera-mounted monitor featuring 3G-SDI and 4K HDMI for professional monitoring of video signals.

Screen and image quality

The IPS panel has a resolution of 1920 x 1200 pixels and a pixel density of up to 323 ppi. Brightness is 450 cd/m² with a contrast ratio of 1200:1. The viewing angle is 160°, ensuring the image remains clear even when the operator changes position. For accurate colour reproduction, the Rec.709 colour standard and factory calibration are used.

Connectivity and features

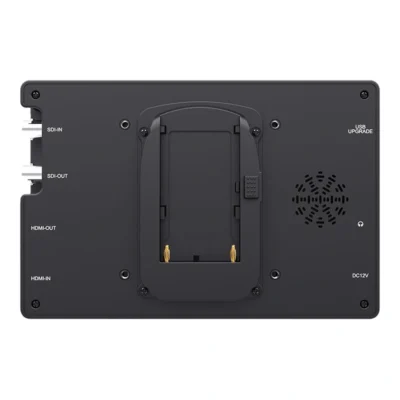

The monitor includes inputs for 3G-SDI and 4K HDMI, as well as 3G-SDI and HDMI loop-out to send the signal to other screens. The SDI input supports formats up to 1080p 60 Hz and the HDMI input supports up to 4K 2160p 30 Hz. Audio is available via a built-in speaker or a 3.5 mm headphone jack. A USB port is provided for updates.

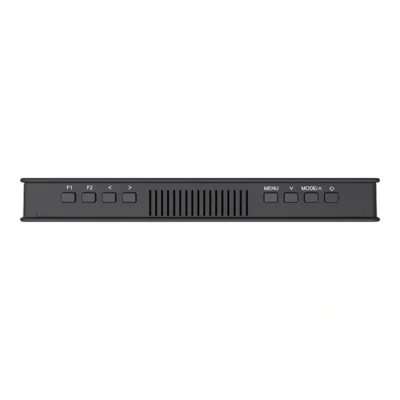

Two customizable shortcut buttons, F1 and F2, provide quick access to image tools. These include peaking focus assist in red, green, or blue, false colour, zebra exposure, histogram and anamorphic mode. Settings for image freeze, image flip, safe areas of 80 %, 85 %, 90 %, 93 %, 96 % and 2.35:1, and ratio markers for 4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1 and 2.35:1 are also available.

Power and mounting

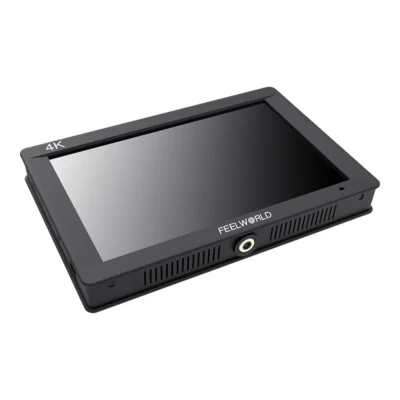

The monitor is powered by an F970 battery plate as standard, while plates for D28S/D54, LP-E6 and U60 as well as a power adapter are optional. The monitor weighs 320 g and is 22 mm thick. For mounting, it features a 1/4″-20 threaded socket at the bottom and a hot shoe mount with 360° rotation. A foldable sunshade is included for better visibility in bright environments.
