Feelworld Monitor F5PROX
2,099 kr
Camera-mounted monitor with a 14 cm touch screen, 1600 cd/m² brightness and HDMI loop out for 4K signals.
Out of stock
Feelworld Monitor F5PROX
A camera-mounted monitor featuring a 14 cm screen with a brightness of 1600 cd/m² and HDMI A connectivity.
The LCD screen
The panel has a resolution of 1920 x 1080 pixels and a pixel density of 400 PPI. It uses a 16:9 aspect ratio and offers a viewing angle of 160°. Settings are controlled via the touch screen. The screen has an 8 bit colour depth.
Signals and connectivity

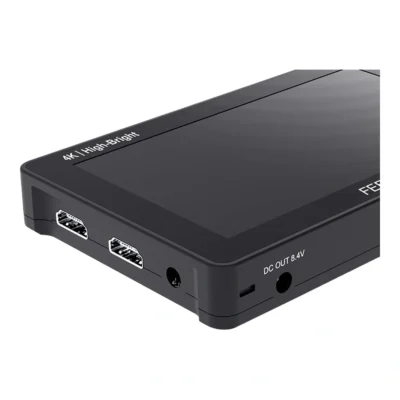

The HDMI A input accepts 4K signals with frame rates from 23.976 to 30 fps and DCI 4K at 24 fps. Full HD signals are supported from 23.976 up to 60 fps. An HDMI A loop out allows the signal to be passed through. Audio is handled via a 3.5 mm audio input and a headphone output.
Imaging tools and power

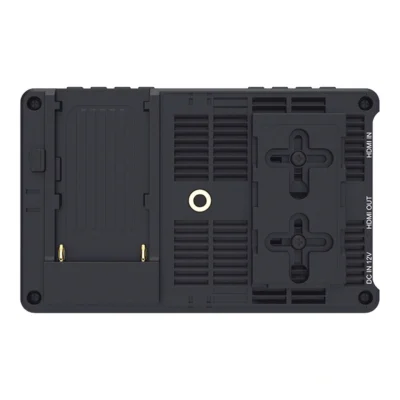

The monitor supports LUTs. Power is supplied via a battery mount for Sony L-Series or NP-F batteries, as well as through USB-C. Dimensions are 148 mm in width, 93 mm in height and 25 mm in depth. The weight is 240 g.
Specifications
| Application | |
|---|---|
| Fits battery | |
| Input | |
| Manufacturer | Feelworld |
| Media type | Video |
| Outputs | |
| Power sources | Battery |
| Screen brightness |
Which batteries does the monitor use?
It uses Sony L-Series or NP-F batteries.
Does it support LUTs?
Yes, LUT support is included.
What is the maximum brightness?
The brightness is 1600 cd/m².
Can I pass the signal to another device?
Yes, it has an HDMI A loop out.
Is the screen a touch screen?
Yes, it is a touch screen.
