Feelworld Monitor SH7
4,499 kr
An on-camera monitor with a 7″ Full HD touchscreen, extremely high brightness of 2200 cd/m² and HDMI/SDI cross conversion.
In stock
Feelworld Monitor SH7
An on-camera monitor with a 7″ screen and a brightness of 2200 cd/m², making it viewable in daylight.
Screen and interface

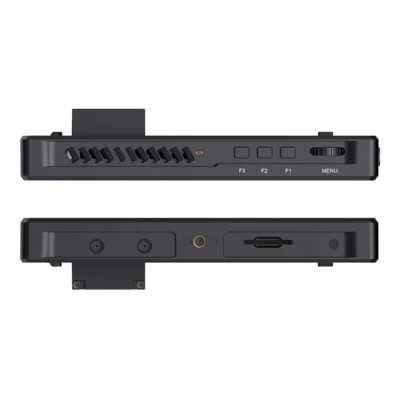

The IPS panel has a resolution of 1920 x 1200 pixels and supports REC709, DCI-P3 and BT2020 colour spaces. The menu is operated via the touchscreen, and three programmable shortcut buttons on the top of the screen provide quick access to saved functions. An integrated cooling system prevents overheating during extended use.
Connectivity and conversion

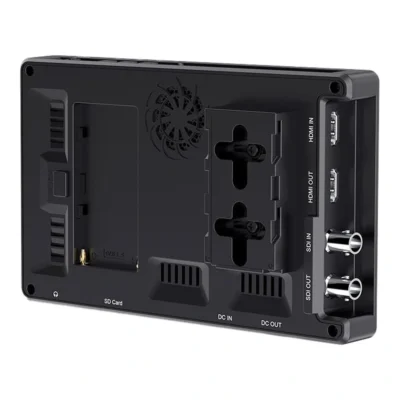

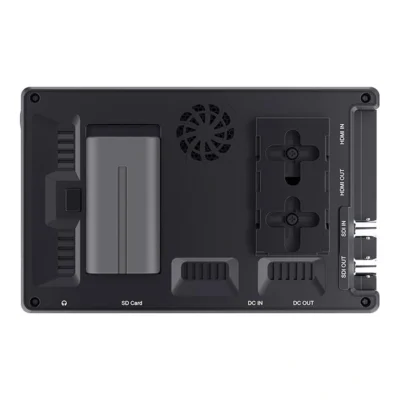

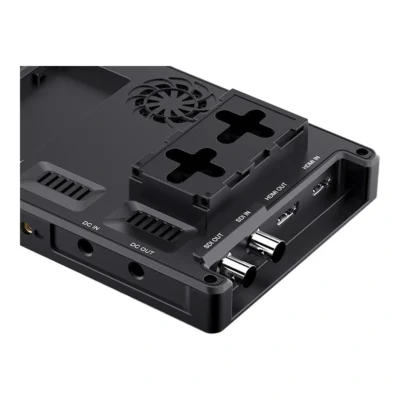

The monitor features both HDMI and SDI inputs and outputs with built-in cross conversion between HDMI and SDI. Audio is monitored in real time via a 3.5 mm headphone jack. Signals can be passed through the outputs with an applied 3D LUT for real-time monitoring.
Imaging tools and mounting

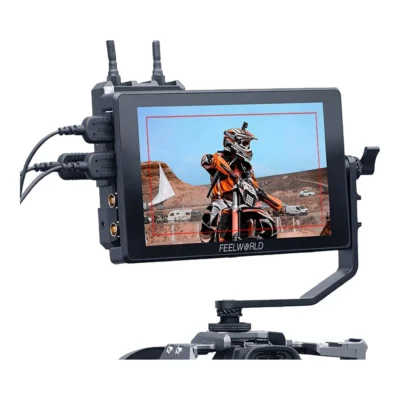

Auxiliary functions include waveform, vectorscope, histogram, focus peaking, zoom, check field and audio meter monitoring. For composition, there are center and safety markers as well as a nine-grid. The image can be flipped both horizontally and vertically, and the unit supports HDR monitoring and 3D LUTs. Two 1/4″-20 threads on the bottom and right side are used for mounting on a camera or other equipment.
Power is supplied via a 12 VDC input for a power adapter or via L-series batteries, sold separately. An auxiliary output provides 8 VDC to compatible cameras or other devices.
Included in the box
- Mini/Micro-HDMI to HDMI cable
- Tilt arm
- Wrench
Specifications
| Application | |
|---|---|
| Input | |
| Manufacturer | Feelworld |
| Media type | Video |
| Outputs | |
| Screen brightness | |
| Screen size |
Can this monitor convert signals?
Yes, it features built-in signal cross conversion between HDMI and SDI.
How is the monitor powered?
It uses a 12 VDC input for power adapters or separately available L-series batteries.
Does it support 3D LUTs?
Yes, it supports 3D LUTs for monitoring and can output the image with a LUT effect via HDMI and SDI.
What mounting options are available?
The unit has two standard 1/4"-20 mounting threads located on the bottom and the right side.
