Feelworld Monitor F5 Pro V4 6"
1,899 kr
Camera-mounted monitor with a 6 inch touchscreen, 4K HDMI in and out, and support for 32 custom LUT files. It weighs 245 g and features an integrated power system for external equipment.
In stock
Feelworld Monitor F5 Pro V4 6"
A camera-mounted monitor with a 6 inch screen featuring 4K HDMI input and loop-out.
Screen and imaging tools
The panel has a native resolution of 1920×1080 and is calibrated to REC-709. Settings are controlled via the touchscreen or physical buttons, and pinch-to-zoom allows you to zoom into the image. For accurate exposure and focus, the monitor includes a histogram, false colour, focus assist, pixel to pixel, frame guides, and a nine grid. Up to 32 custom LUT files can be imported via the USB-C interface.
Connectivity and power

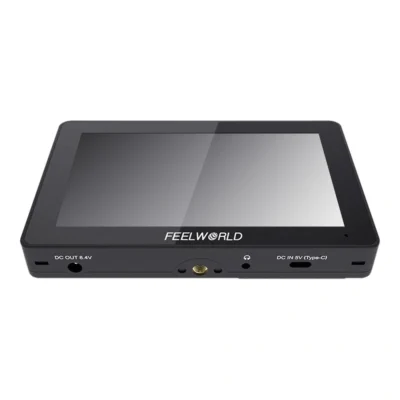

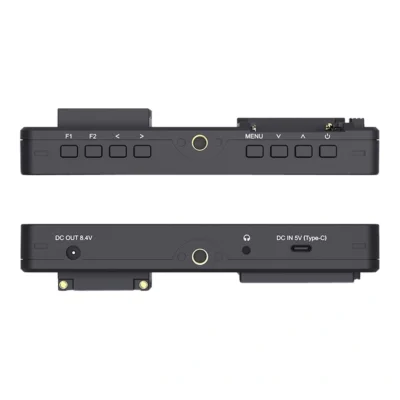

The monitor features an HDMI input for 4K signals and an HDMI output to send the signal further. Audio is handled via a separate audio input. Power options include USB-C, a Sony F970 battery mount, or an 8.4 V DC output. The back includes an external mounting and power kit for equipment requiring Sony F970 batteries, such as wireless transmitters or LED lights.
Mounting and weight
The weight is 245 g and the monitor has 1/4″-20 screw mounts on the top, bottom, and right side for cages and adapters. An included tilt arm with a shoe mount allows the screen to rotate 360 degrees. A sunshade is included for outdoor use.
Included in the box
- Micro HDMI cable
- Sunshade
- Tilt arm
- Disassemble wrench
- TYPE-C to USB
- Manual
Specifications
| Application | |
|---|---|
| Aspect ratio | |
| Fits battery | |
| Input | |
| Manufacturer | Feelworld |
| Media type | Video |
| Outputs | |
| Power sources | Battery |
| Resolution | |
| Screen resolution | |
| Screen size | |
| Touchscreen |
Which battery type does the monitor use?
It uses an NP-mount for Sony F970 batteries.
Can I use this with other monitors?
Yes, it has 4K HDMI in and loop-out to send signals to other monitors simultaneously.
How many custom LUTs can be loaded?
Up to 32 user files can be imported via the TYPE-C interface.
What is included for mounting?
It comes with a cold shoe mounted Tilt Arm and 1/4"-20 screw mounts on the top, bottom, and right.
