Feelworld Monitor S7

Feelworld Monitor S7

A camera-mounted 7″ monitor with 1600 nits and 12G-SDI for monitoring 4K HDR signals.

Screen and image quality

The 17.8 cm IPS panel features a resolution of 1920 x 1200, a 1200:1 contrast ratio, and a 160° viewing angle. The screen is visible in sunlight and covers 94.9% of the DCI-P3 colour gamut. Settings are controlled via the touchscreen or a scroll wheel, and three custom shortcut buttons are located on top. The housing is constructed from CNC aluminium.

Connectivity and signals

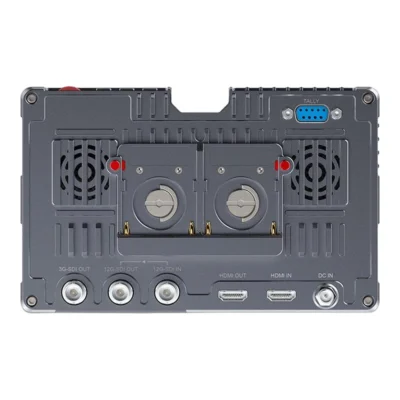

The monitor features one 12G-SDI input, one 12G-SDI output, and one 3G-SDI output. It is also equipped with an HDMI 2.0 input and an HDMI 2.0 output. Built-in cross conversion between HDMI and SDI allows you to switch signals without external converters. It supports signals up to DCI 4K 4096 x 2160p60 and UHD 4K 3840 x 2160p60, as well as 1080PsF at 24 and 23.98. Audio is monitored via a 3.5 mm headphone jack and a 16-channel audio meter.

Image tools and power

Imaging tools include waveform, vectorscope, histogram, false colour, and focus assist. Overexposure is adjustable between 10IRE and 100IRE. Safety frames are available in 80/85/90/93/96% and 2.35:1. Colour temperature can be set to 5600/6500/9300K or a user-defined value. HDR support is available for HLG1, HLG2, and HLG3. A 3-colour tally light on top connects via DB9 and illuminates in red, green, or yellow.

• Mounting: 3 x 1/4″-20 threads

Power is supplied via the DC input or a rear battery mount for L-series and NP-F series batteries. One 6600 mAh NP-F970 battery lasts approximately 3 hours. Batteries are hot-swappable, and a V-mount battery plate is sold separately. It comes with a tilting shoe adapter mount.
