Feelworld Monitor LUT6 6"
3,899 kr
On-camera monitor with a 6 inch touchscreen, 2600 nits, and 4K HDMI in and out. It features built-in HDR and De-log 3D LUTs for monitoring log files.
In stock
Feelworld Monitor LUT6 6"

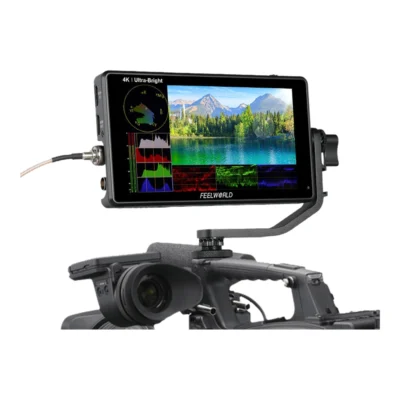

An on-camera monitor with a 6 inch screen, 4K HDMI input, and a brightness of 2600 nits for visibility in full daylight.
Screen and imaging tools
The IPS panel features a resolution of 1920 x 1080 pixels, a 1000:1 contrast ratio, and 160° viewing angles. Settings are controlled via the touchscreen or using physical buttons and a rotatable wheel. For focus, peaking assist is available in five colours with ten adjustable levels. The zoom function ranges from 100 % to 300 %, and anamorphic mode supports 1.25x, 1.33x, 1.5x, and 2.0x mag.
Connectivity and LUT

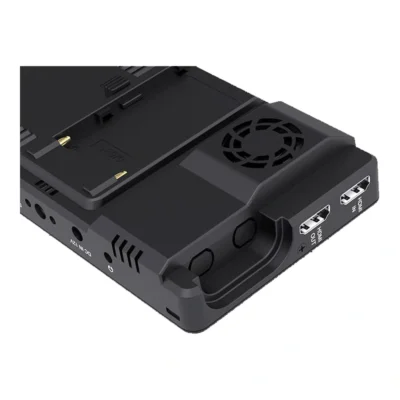

The HDMI input and loop-out handle 4K signals, while audio is sent via a separate audio output. Built-in HDR/De-log 3D LUTs include HLG 2020, HLG 709, HLG P3 HDR 3D LUT, and Rec709 De-slog3 LUT, with support for SLOG2, SLOG3, LOGC, and VLOG. User 3D LUTs can also be uploaded to the monitor.
Power and mounting

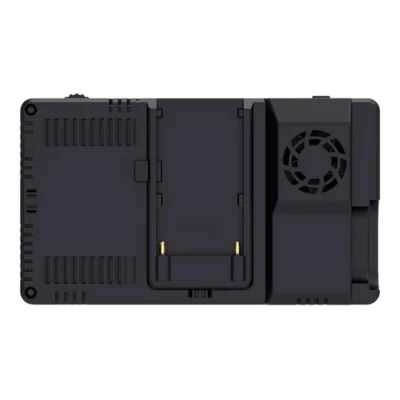

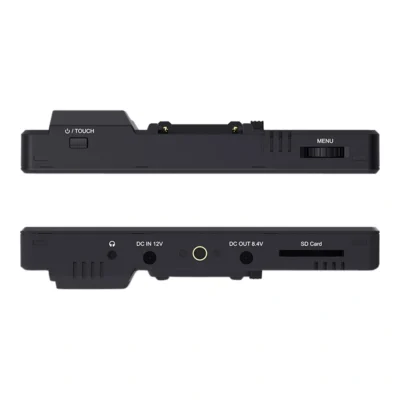

The rear features an NP-mount battery attachment with space for two batteries. The monitor also provides an auxiliary power output to power the camera. For mounting, 1/4″ standard points are located on the bottom, left, and right sides. An SD card slot is positioned on the side.
Included in the box
- LUT6 monitor
- Carrying case
- Mini/Micro HDMI to HDMI cable

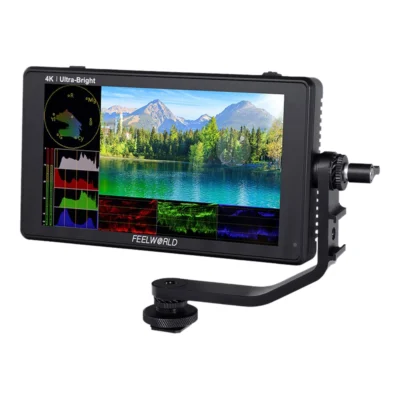

- Tilt arm
- User manual
Specifications
| Application | |
|---|---|
| Aspect ratio | |
| Contrast ratio | |
| Fits battery | |
| Input | |
| Manufacturer | Feelworld |
| Media type | Video |
| Outputs | |
| Power sources | Battery |
| Resolution | |
| Screen brightness | |
| Screen resolution | |
| Screen size | |
| Touchscreen |
Which LUTs are built into the monitor?
It includes HLG 2020, HLG 709, HLG P3 HDR 3D LUT, Rec709 De-slog3 LUT, SLOG2, SLOG3, LOGC, and VLOG.
Can I power my camera from the monitor?
Yes, it provides an auxiliary power output for this purpose.
What battery type does it use?
It uses an NP-mount for batteries.
Does it support 4K signals?
Yes, it has 4K HDMI input and loop-out.
How is the monitor mounted to a rig?
It has standard 1/4" mounting points on the bottom, left, and right.
