Feelworld Monitor LUT6S 6" with SDI

Feelworld Monitor LUT6S 6" with SDI

An on-camera monitor with a 6 inch screen, a brightness of 2600 nits, and support for 3G-SDI.

Screen and image quality

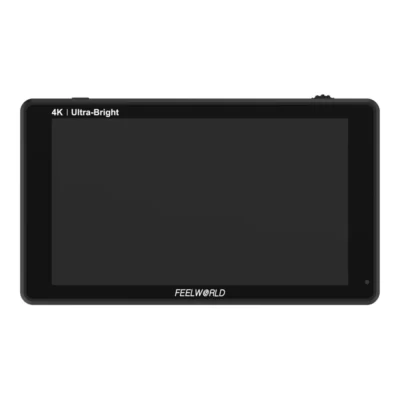

The panel is a Full HD IPS screen with a resolution of 1920 x 1080 pixels and 368 PPI. It features a 1000:1 contrast ratio, a 160º viewing angle, and utilises the Rec.709 colour standard. The screen is made of optically bonded glass with an anti-reflective coating. The brightness of 2600 nits is significantly higher than conventional field monitors, reducing reflections during outdoor shooting.

Connections and signals

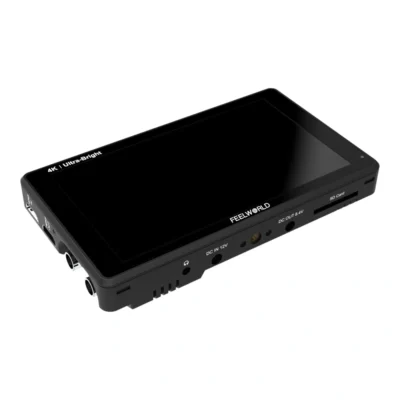

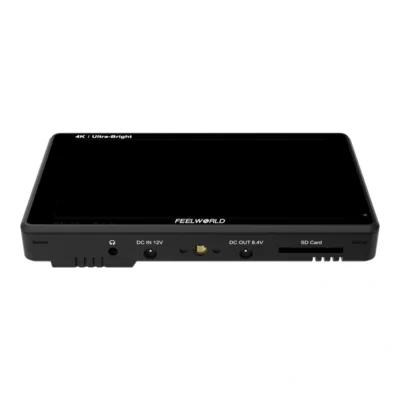

The monitor accepts 4K signals via an HDMI input and a 3G-SDI input. There are also HDMI and 3G-SDI loop-out ports. Audio is monitored via a 3.5 mm headphone jack.

Built-in HDR 3D LUTs are included for HLG 2020, HLG 709, and HLG P3, as well as Rec709 De-slog3 for SLOG2, SLOG3, LOGC, and VLOG. Custom .cube files can be uploaded via the SD card slot on the side. Image tools include Zebra Exposure, adjustable from 1 % to 100 %, and zoom from 100 % to 300 %.

Power and mounting

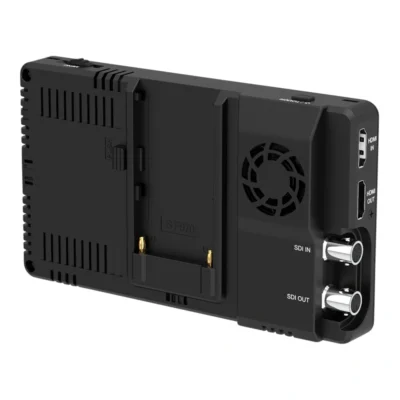

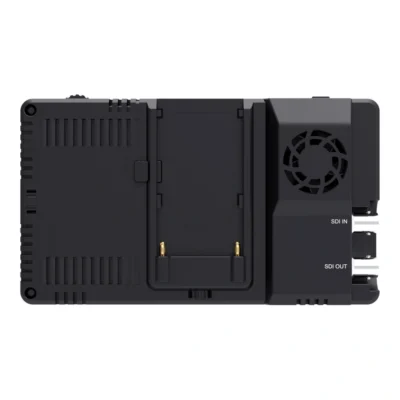

Power is supplied via a 12 V DC input or an NP-mount for NP-F batteries on the rear. A built-in fan starts automatically when brightness exceeds 80 %. For mounting on cameras and rigs, standard 1/4″ mount points are located on the bottom, left, and right sides.
