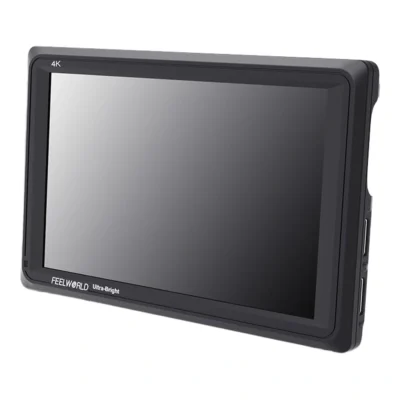

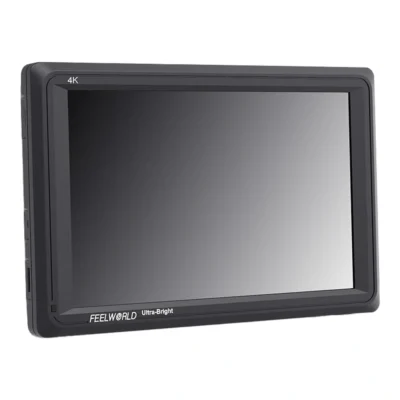

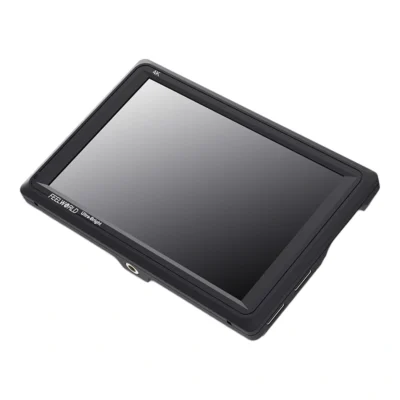

Feelworld Monitor FW279 7"

Feelworld Monitor FW279 7"

A 7″ camera-mounted monitor with a brightness of 2200 nit for outdoor use.

Screen and image quality

The IPS panel features a resolution of 1920×1200, a contrast of 1200:1, and a pixel density of 323 ppi. Colour reproduction follows the Rec.709 colour standard and is factory calibrated to counteract colour drift. The viewing angle is 160° and the screen is 25 mm thick.

Connections and imaging tools

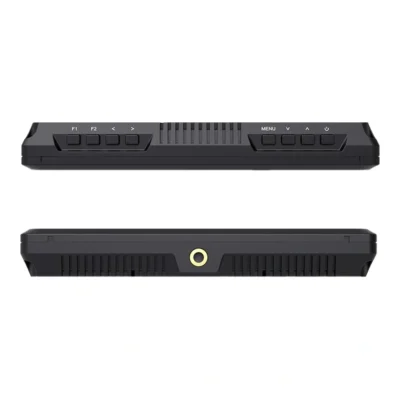

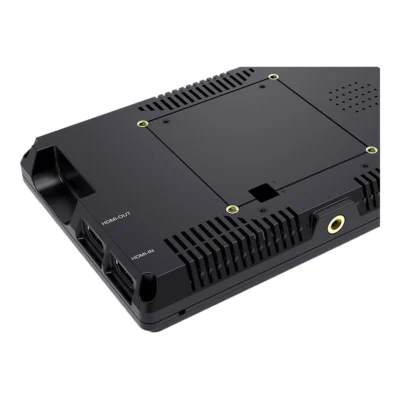

The HDMI input and loop-out handle signals up to 4Kp30. Audio can be monitored via the built-in speaker or a 3.5 mm headphone jack. Two programmable function buttons are available, and settings are automatically saved between restarts.

Imaging tools include histogram, false colour, zebra exposure, focus peaking in red, green, blue or three-colour, and zoom up to 16x. The anamorphic mode supports 1.3x, 2.0x, 2.0x mag, and custom adjustment between 1.20x and 2.00x. Safe areas are available in 80 %, 85 %, 90 %, 93 %, 96 % and 2.35:1, while ratio markers cover formats such as 4:3, 16:9 and 2.35:1.

Power and mounting

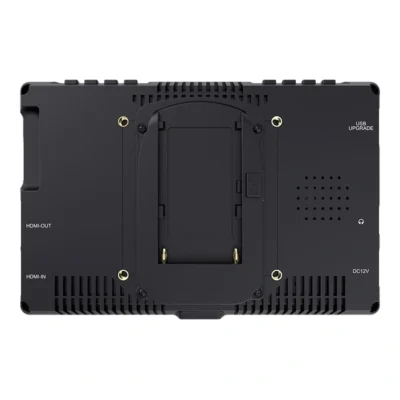

The monitor is powered via a 12 V DC input or a battery plate for Sony compatible F970 batteries. Alternatively, battery plates for D28S, D54 or LP-E6 can be installed for power. For continuous operation, a DC 7-24 V output with a power source over 18 W is required, such as a 12 V / 2 A adapter or a 12 V 3 A adapter. 1/4″ mounting points are located on the bottom, left and right sides. VESA 75 mm mounting holes are on the rear for more stable installation.
