SmallRig 4293 V-Mount Battery VB212 Mini x Caleb Pike
5,899 kr
Compact V-mount battery with 14.8 V output and PD fast charging up to 140 W via USB-C.
In stock

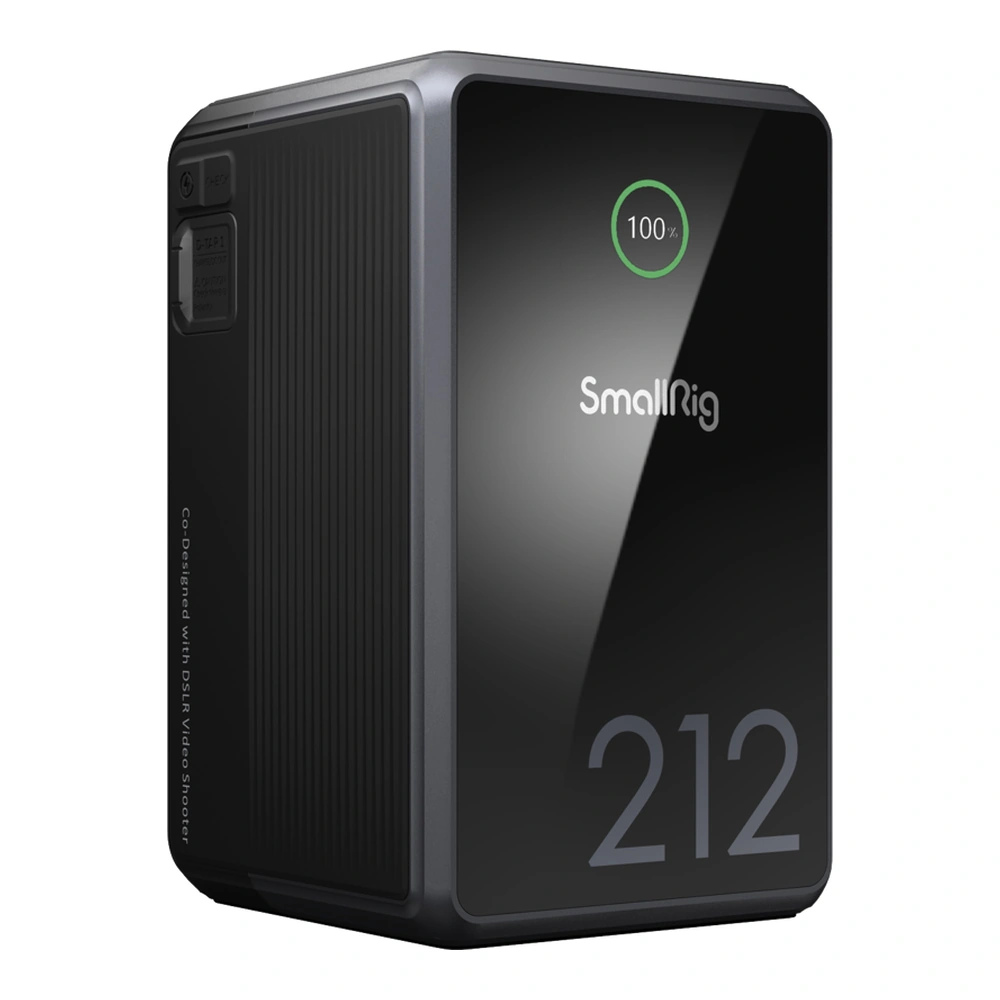

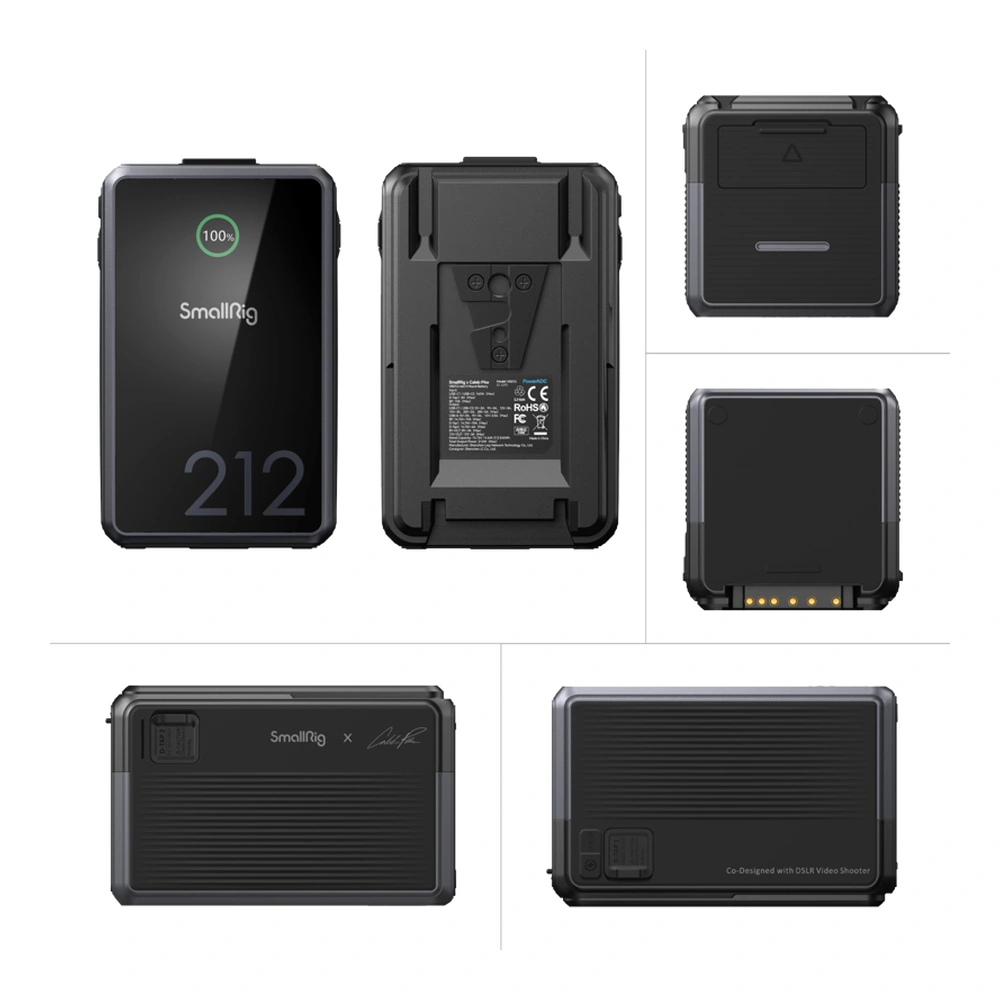

SmallRig 4293 V-Mount Battery VB212 Mini x Caleb Pike

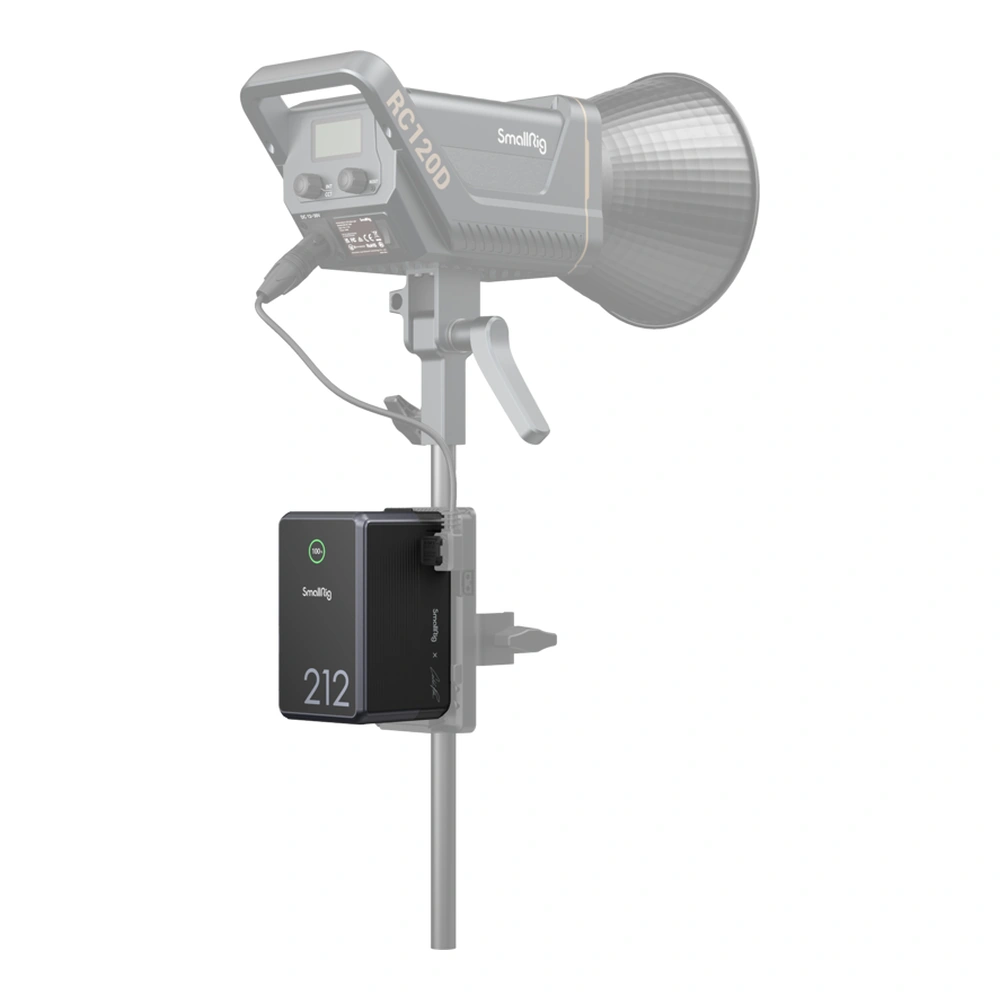

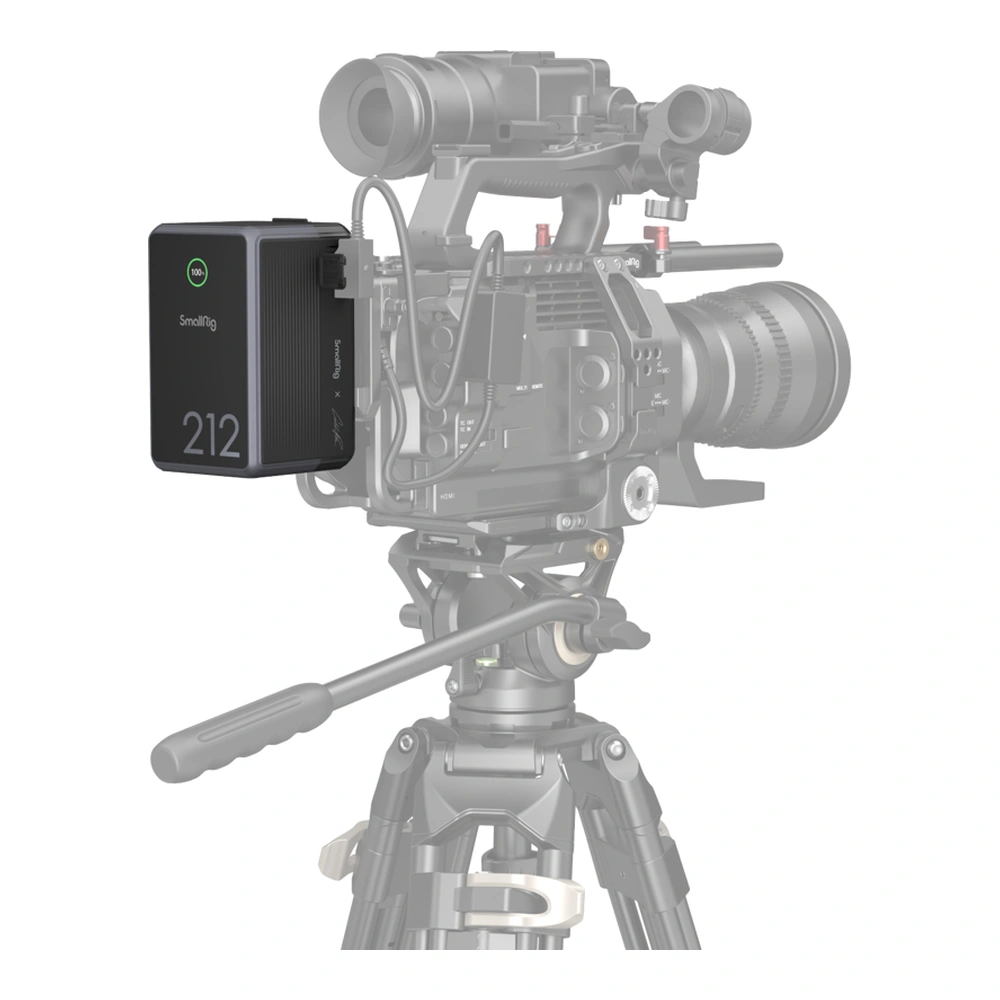

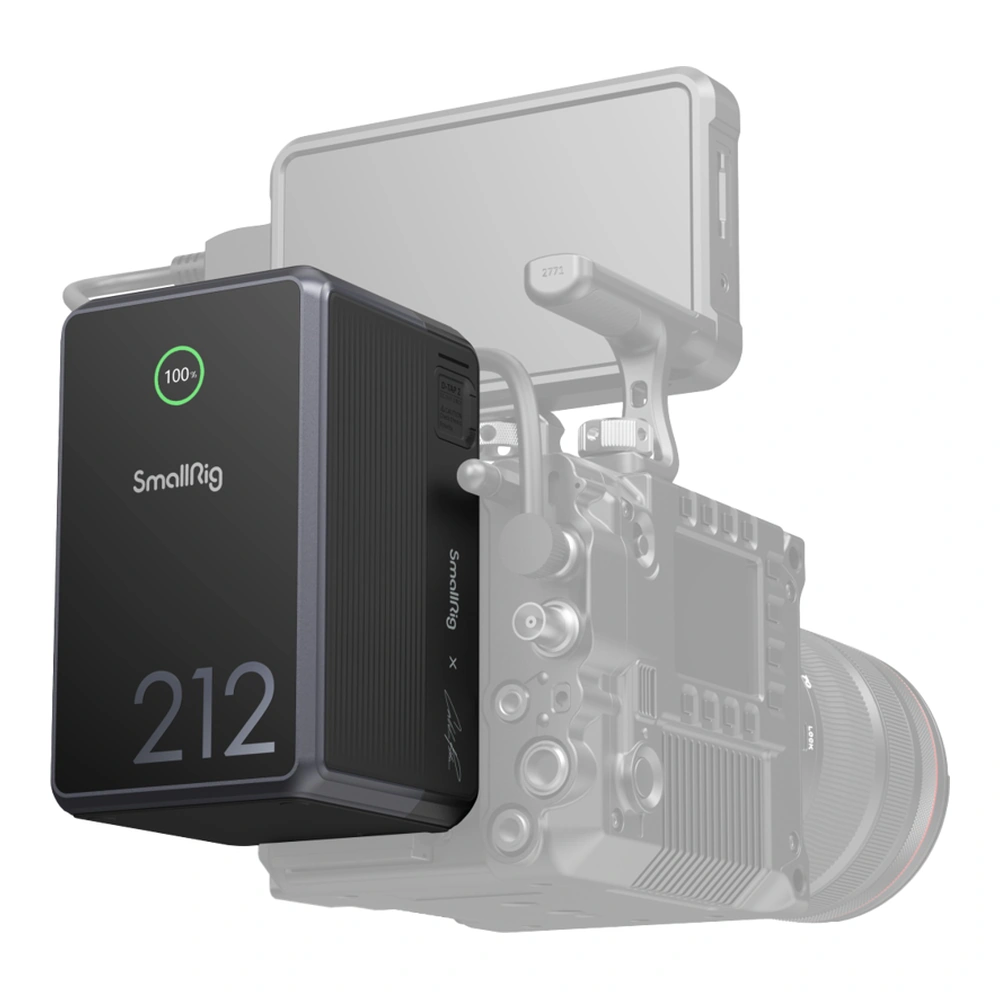

A V-mount battery designed to power equipment such as mirrorless cameras, camcorders, monitors, wireless transmitters and LED lights. It operates at 14.8 V and utilises lithium-ion cells.
Connectivity and charging

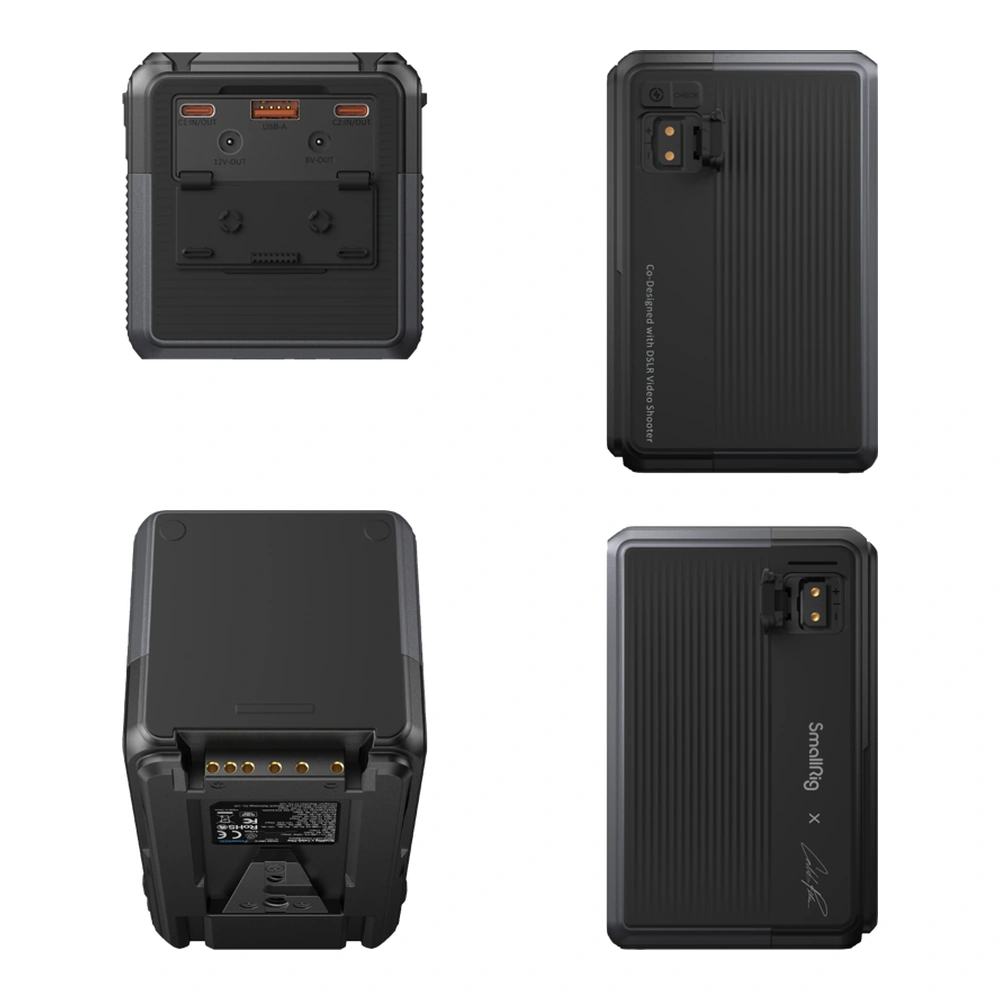

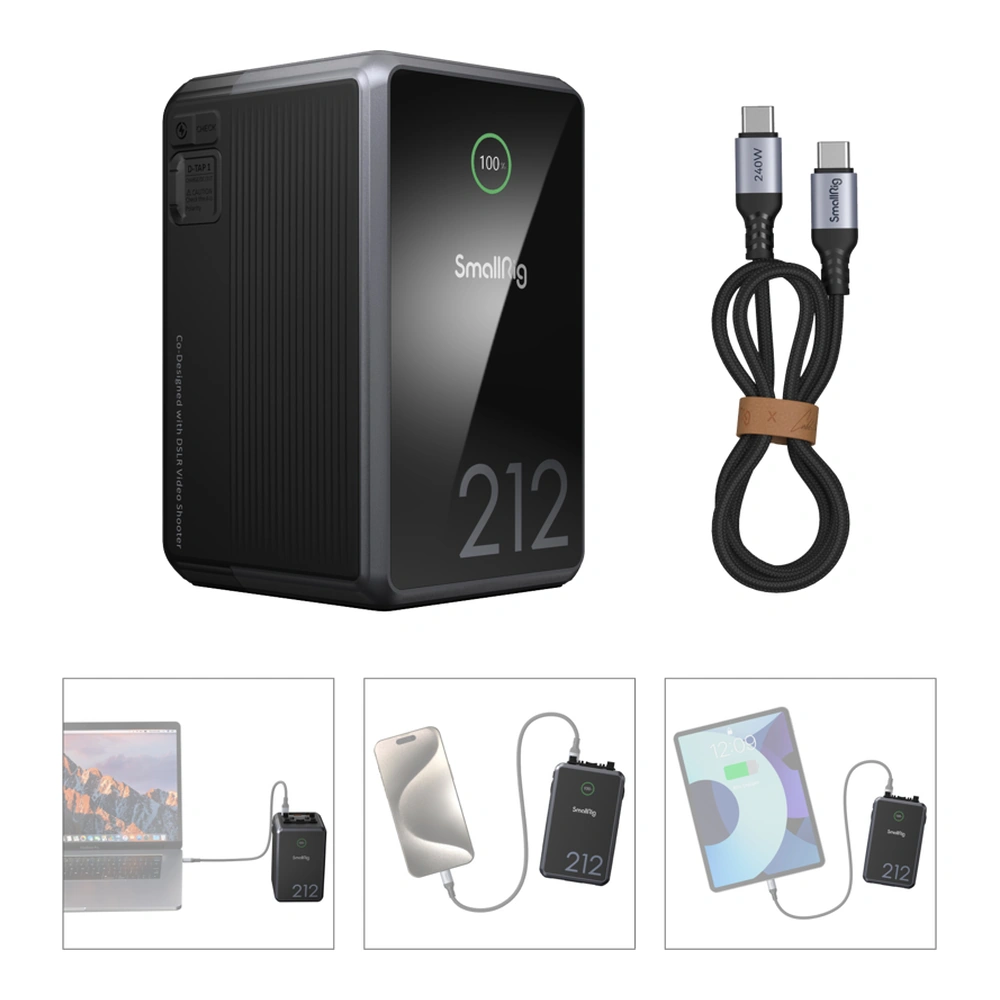

The battery features two USB-C ports, two D-Tap ports, one USB-A port, a BP port, as well as DC 8 V-OUT (5.5×2.1 mm) and DC 12 V-OUT (5.5×2.5 mm). Bi-directional PD fast charging and discharging up to 140 W is supported via USB-C, allowing a full charge in 2 hours. An integrated TFT display shows battery status and output power for each port in real time.
Construction and protection
The housing is made of aluminium alloy with a silicone coating and is drop-resistant. The design meets standards including MSDS, UN38.3, IEC62133, UL2054 and UL62368. For mounting, 1/4″-20 and 3/8″-16 threaded holes are available in the V-lock section. An intelligent BMS system provides protection against over-current, short circuits, over-temperature and over-voltage.

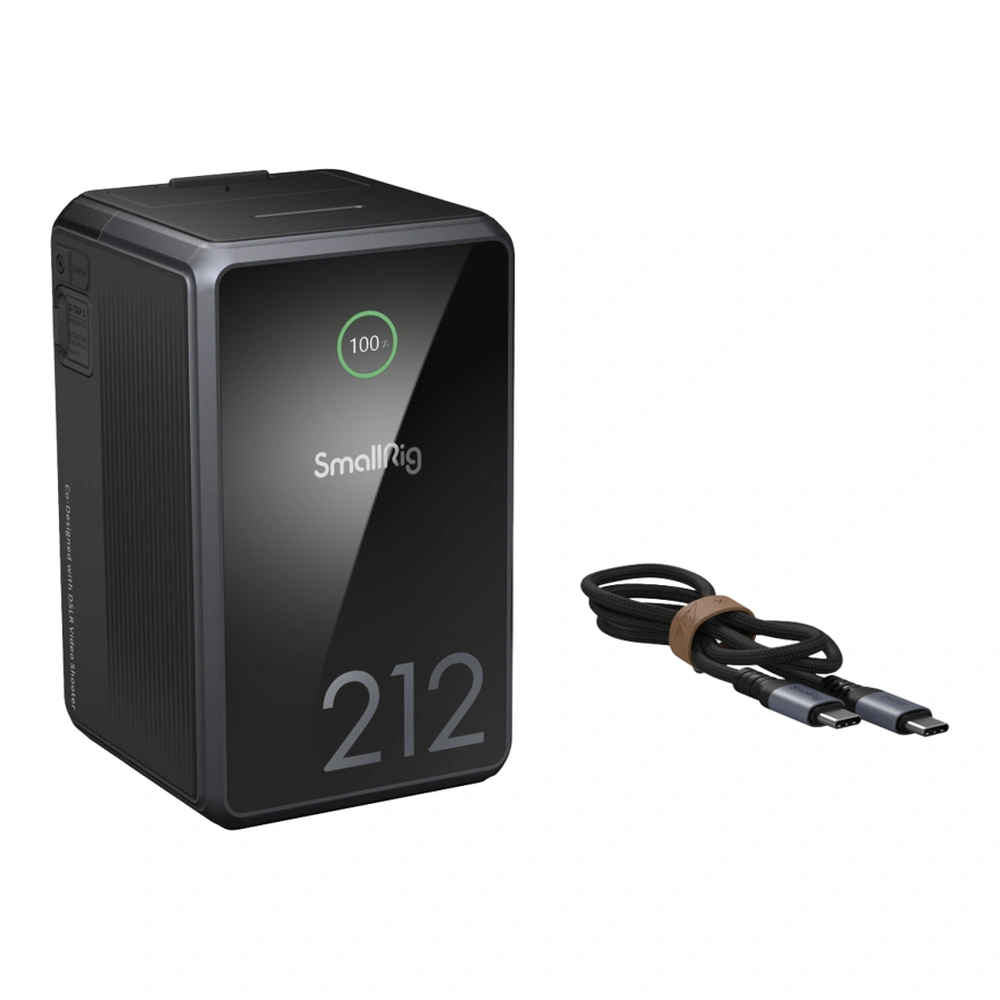

Supplied with a 240 W USB-C charging cable.
Specifications
| Application | |
|---|---|
| Battery type | |
| Charger type | |
| Connections | |
| Format | V-Mount |
| Length | |
| Manufacturer | SmallRig |
| Media type | Video |
| Power sources | Battery |
| USB ports | |
| Volt |
Which charging protocols are supported?
It supports PD 3.1, QC 3.0 and AFC.
How long does it take to charge fully?
It fully charges in 2 hours.
What mounting options are available?
The V-lock features 1/4"-20 and 3/8"-16 threaded holes.
What safety protections are included?
The BMS provides over-charge, over-discharge, short circuit, overload, over-current and extreme temperature protection.
