SmallRig 5092 Cage for Canon EOS R5 Mark II with Cooling Fan CF-R20EP

SmallRig 5092 Cage for Canon EOS R5 Mark II with Cooling Fan CF-R20EP

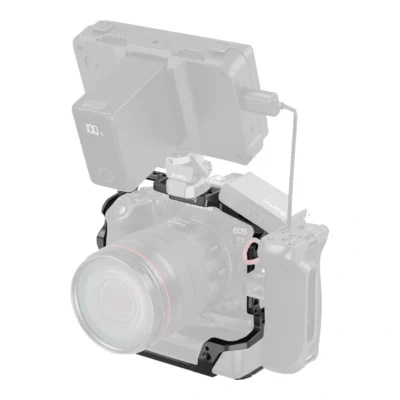

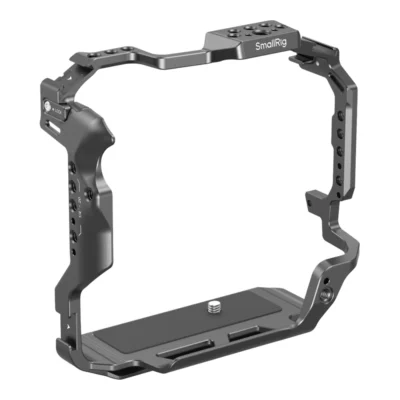

A full cage designed for the Canon EOS R5 Mark II when used in combination with the CF-R20EP cooling fan.

Mounting and access

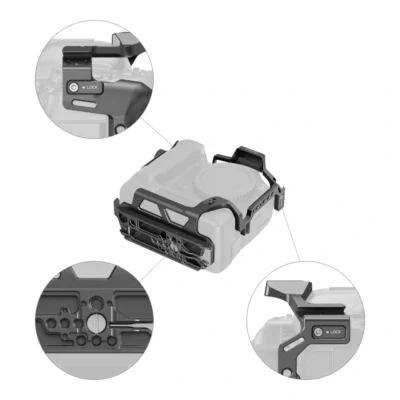

The camera is secured using a 1/4″-20 screw at the bottom and two M3 screws on the sides. Integrated silicone pads prevent scratches on the camera body. The design ensures unobstructed access to the battery compartment, card slots, and buttons.

Accessory mounts

The cage features 1/4″-20 and 3/8″-16 threaded holes, as well as ARRI mounting holes for side handles, monitor mounts, and top handles. Three cold shoe mounts are available for attaching LED lights and microphones. A front 1/4″-20 hole is compatible with a single rod clamp for 15 mm rods and accessories such as follow focus. For straps, it includes a QD socket for shoulder straps and a dedicated wrist strap mount.

Baseplate and weight

The baseplate incorporates an Arca-Swiss quick release plate compatible with Arca-type tripods and DJI RS 2, RSC 2, RS 3, RS 3 Pro, RS 4, and RS 4 Pro stabilisers. A double tool is built into the bottom for easy assembly and disassembly. The cage weighs 183 g.
