SmallRig 3660 L-Bracket for Sony A7 IV / A7S III / A1

SmallRig 3660 L-Bracket for Sony A7 IV / A7S III / A1

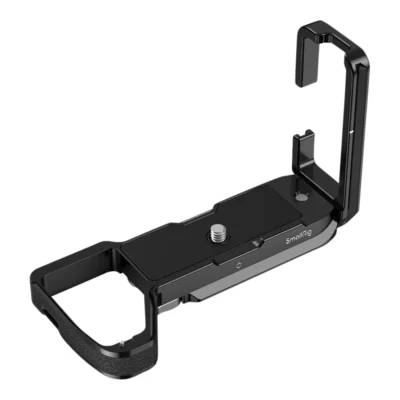

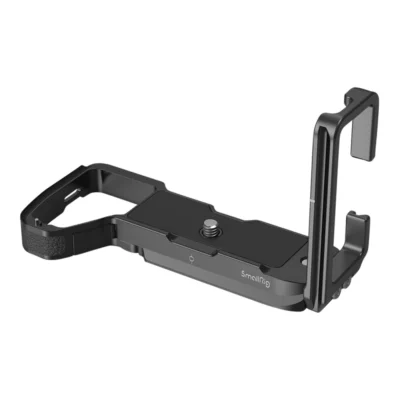

This L-bracket is designed for Sony A7 IV, A7S III and A1. It mounts to the bottom of the camera using a 1/4″-20 screw and a mounting pin to prevent twisting.

Plates and mounting

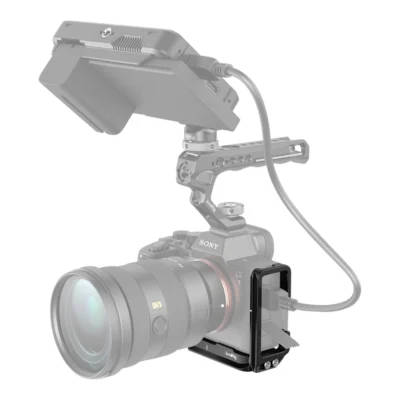

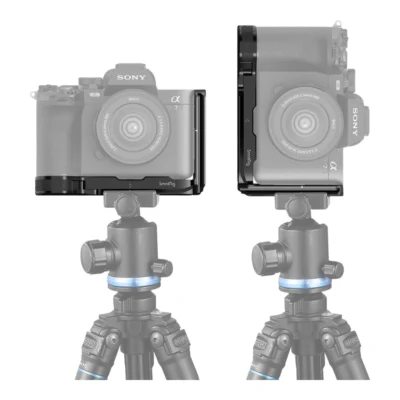

Both the bottom and side plates are Arca-compatible and feature centering marks. The side plate is extendable to provide space for HDMI cables and can be adjusted to facilitate the rotation of the LCD screen on the Sony A7 IV and A7S III. The base includes several 1/4″-20 threaded holes that support tripod quick-release plates as well as the plate for DJI RS 2 and RSC 2 gimbals. A wrist strap hole is located on the right side of the bottom plate.

Grip and materials

A locking knob by the battery door is shaped to provide space for the pinky finger. The side is covered in genuine leather and silicone protection prevents scratches on the camera body. An integrated flat-head screwdriver and hex key are included for assembly and removal. The bracket is made from aluminium, stainless steel, silicone and leather. Dimensions are 142 x 89 x 65 mm (W x H x D) and it weighs 152 g.
