Feelworld POE20X SDI/HDMI PTZ Camera with 20x Optical Zoom

Feelworld POE20X SDI/HDMI PTZ Camera with 20x Optical Zoom

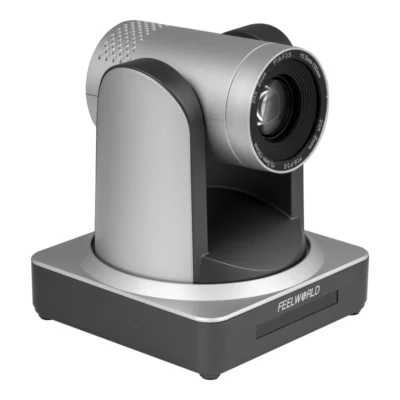

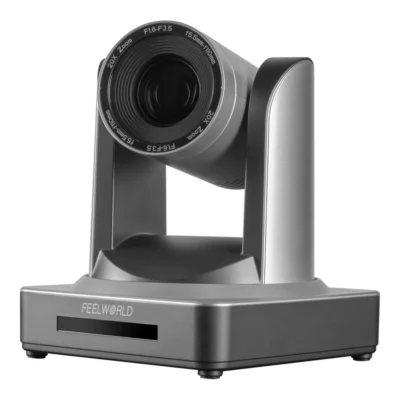

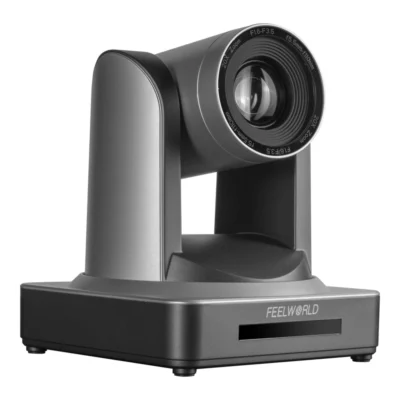

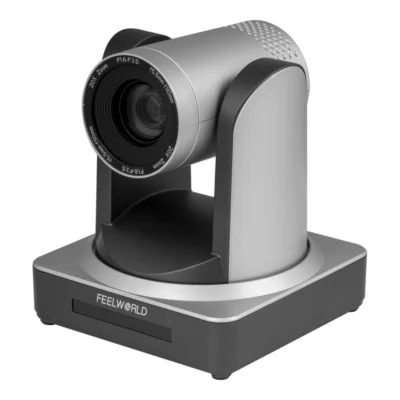

A PTZ camera for livestreaming and video conferencing featuring 20x optical zoom and Full HD resolution. The camera uses a CMOS sensor and supports frame rates up to 1080p@60fps. It includes autofocus and Smart Frame to ensure participants and details remain in shot.

Connectivity and power supply

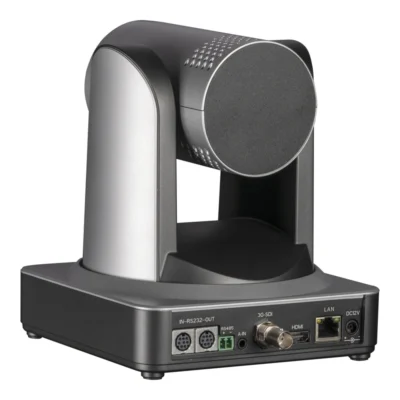

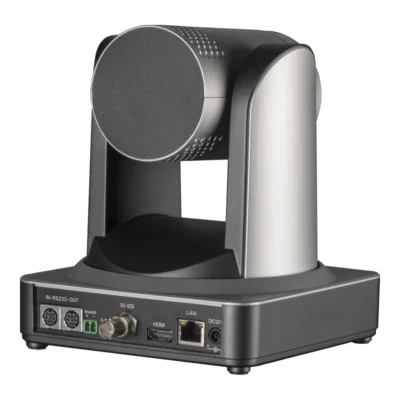

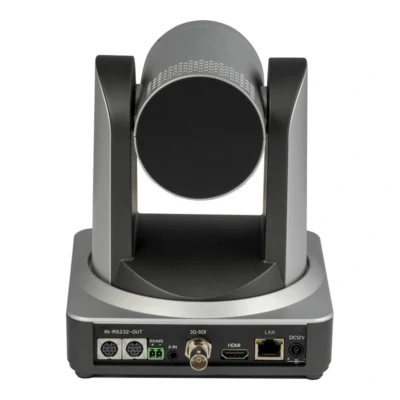

The unit provides simultaneous outputs for 3G-SDI, HDMI and IP. The POE20X allows transmission up to 100 m in 1080p60 format via 3G-SDI. PoE support enables power, video, audio and control to be transmitted via a single cable. For audio, there is a 3.5 mm dual-track linear input.

Movement and control

The lens rotates 340° horizontally (±170°) and 120° vertically (-30° to +90°) with quiet movements. Panning, tilting and zooming can be controlled via the included remote control, WEBSERVER software or the FEELWORLD L2 PLUS video switcher. The remote control allows for 10 preset positions, while up to 255 positions can be stored via WEBSERVER.

The camera can be installed on a wall, ceiling or tripod, although the mount is sold separately. Built-in 2D/3D noise reduction reduces image noise. It supports H.265 and H.264 encoding. Other models in the series include the USB10X and NDI20X.
