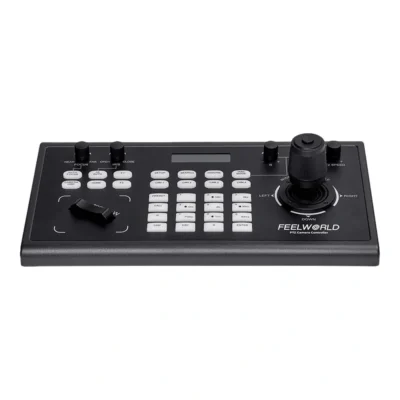

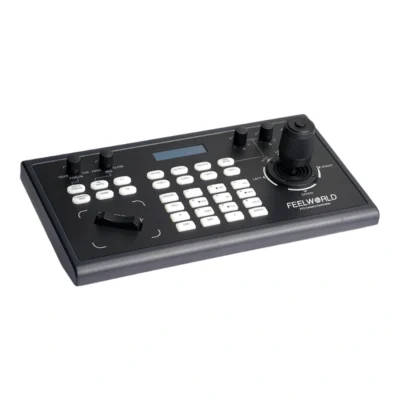

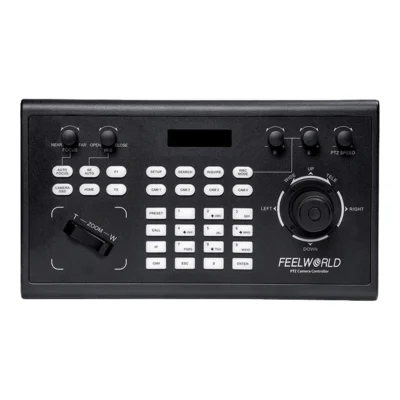

Feelworld KBC10 PTZ Camera Controller with Joystick and Keyboard Control LCD Display PoE Supported
7,599 kr
PTZ camera controller with a 4D joystick and LCD display that supports PoE and can manage up to 255 cameras.
In stock
Feelworld KBC10 PTZ Camera Controller with Joystick and Keyboard Control LCD Display PoE Supported

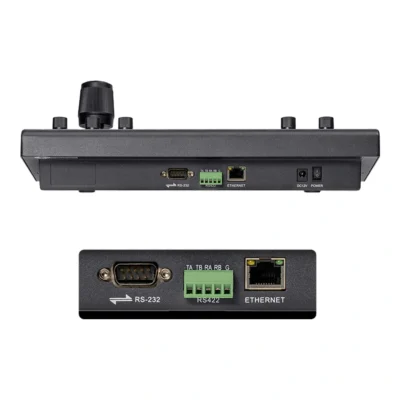

A joystick controller for PTZ cameras that supports ONVIF, IP VISCA, VISCA, and Pelco-D/P protocols. The unit can control up to 255 cameras and 255 presets via network connection, RS-232 DB-9, or RS-422 5-pin terminal ports. When using twisted pair cable, the control range reaches up to 1188 m.
Control and Interface

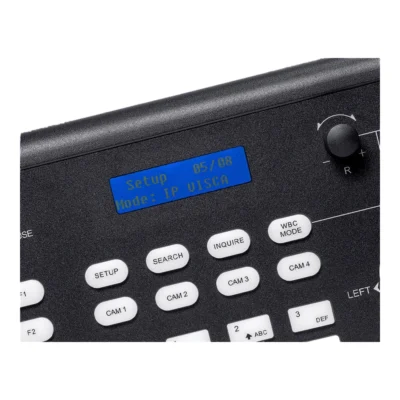

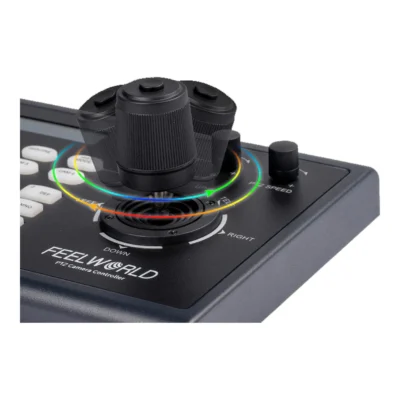

A 4D joystick provides precise speed control over camera movements. The panel features a zoom rocker, dials for focus, iris, and speed, as well as buttons for camera selection. Status is shown in real time on an LCD display, and programmable buttons allow for the assignment of custom shortcuts.
Power Supply
The device can be powered via PoE in a supported network. Alternatively, the included 12 VDC power adapter can be used.
Included in the box
- FeelWorld KBC10
- Power adapter
Specifications
| Connections | |
|---|---|
| Manufacturer | Feelworld |
| Media type | Video |
Which protocols are supported?
It is compatible with ONVIF, IP VISCA, VISCA, and Pelco-D/P.
How many cameras can be controlled?
Up to 255 cameras and 255 presets.
What are the power options?
It supports PoE or the included 12 VDC power adapter.
What is the maximum control distance via twisted pair cable?
Up to 1188 m.
