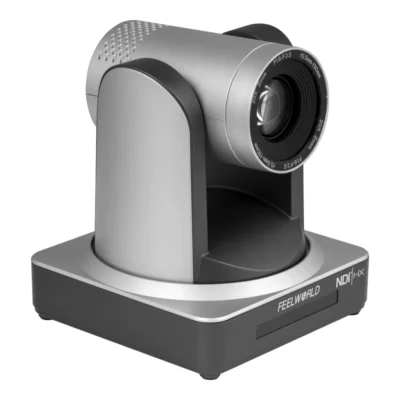

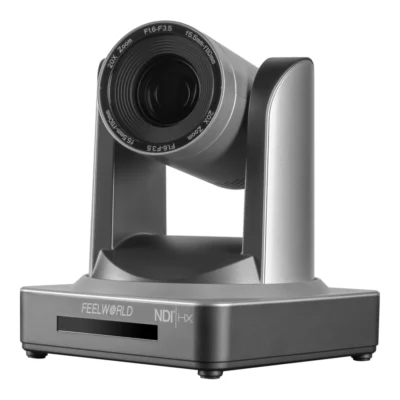

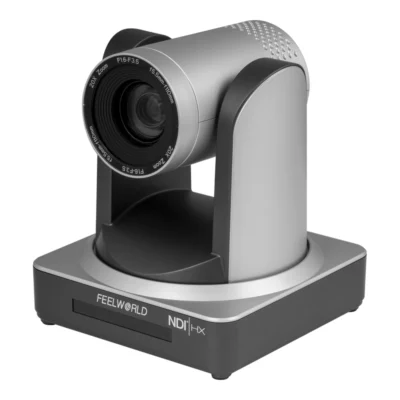

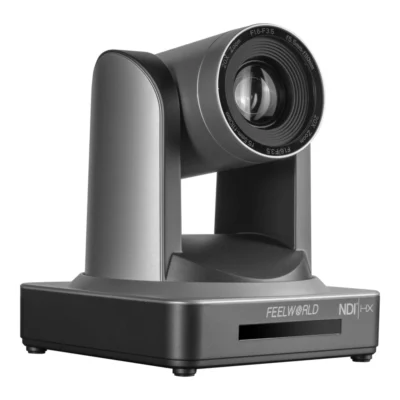

Feelworld NDI20X NDI PoE PTZ Camera with 20x Optical Zoom

Feelworld NDI20X NDI PoE PTZ Camera with 20x Optical Zoom

A PTZ camera for live video production featuring 20x optical zoom and Full HD resolution. It utilises a CMOS sensor and supports PoE, allowing power, video, audio, and control to be transmitted via a single cable.

Video and image quality

The camera delivers image quality up to 1080p@60fps. Built-in low-light technology automatically adjusts brightness in dark conditions or backlight. 2D/3D noise reduction is used to minimise image noise.

H.264 and H.265 encoding ensure smooth video movement even under low bandwidth conditions. Autofocus and smart framing are included to capture participants and details accurately.

Connectivity and control

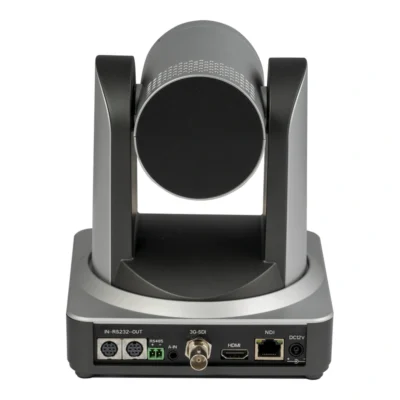

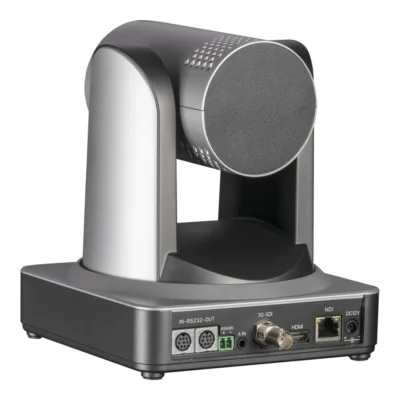

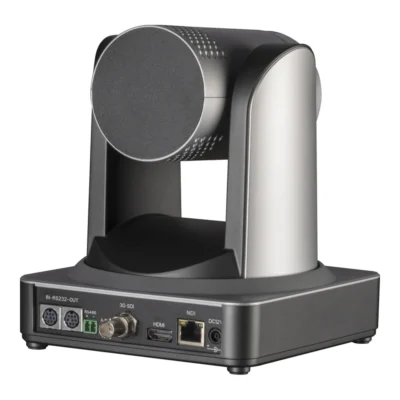

HDMI, 3G-SDI, and NDI/IP video outputs can be used simultaneously. These outputs and various network protocols allow the NDI20X to livestream to platforms such as YouTube, Facebook, and Twitch. 3G-SDI supports transmission up to 100 m in 1080p60 format. For audio, there is a dual-track 3.5 mm linear input.

Panning and tilting are silent, with a horizontal rotation of 340° (±170°) and a vertical rotation of 120° (-30° to +90°). The camera can be controlled via the included remote control, WEBSERVER software, or the FEELWORLD L2 PLUS video switcher.

• Preset positions: up to 255 via WEBSERVER

Mounting and installation

The camera can be installed on a wall, ceiling, or tripod, though the bracket is sold separately. It features a low-power sleep function. Other models in the series include the USB10X and POE20X.
