SmallRig 4165 Video Head
2,499 kr
Fluid video head supporting up to 10 kg with a telescopic handle adjustable from 230 to 360 mm.
In stock
SmallRig 4165 Video Head
An aluminium video head for cameras and rigs with a maximum load capacity of 10 kg.
The head has a maximum height of 140 mm and weighs 1200 g. It features a 360 ° panning range and a 150 ° tilt range. An integrated spirit level assists with alignment. The tripod head mount is available as 3/8″ and 1/4″.
Handling and balance

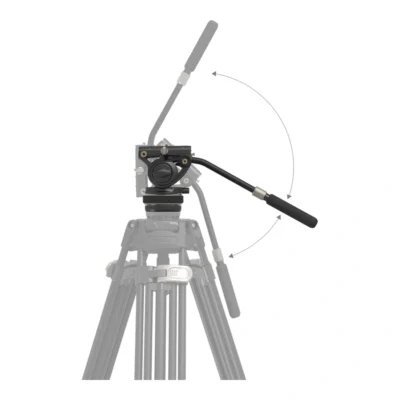

An adjustable stepless damping system allows for panning at various speeds. The panning and tilting counterweight system helps control equipment up to 8 kg when the centre of gravity height is up to 55 mm. The removable telescopic handle can be adjusted between 230 and 360 mm and suits both left- and right-handed users. The handle offers +90°/-60° tilt and 360° swivel.
Plate and mounts
The snap-on quick-release mount is compatible with Manfrotto plates and quick-release plates for DJI RS 2, RS 3 and RS 3 Pro. A 1/4″-20 threaded hole is available for mounting accessories such as magic arms. A built-in tool facilitates the assembly and disassembly of the equipment.
Included in the box
- Video Huvud DH10
- Allen key
- User manual
Specifications
| Manufacturer | SmallRig |
|---|---|
| Material | |
| Maximum height | |
| Maximum load | |
| Pan range | |
| Plate type | |
| Quick Release | |
| Spirit level | |
| Tilt range | |
| Tripod head | |
| Tripod head mount |
What is the maximum load capacity?
The video head supports up to 10 kg.
Which quick-release plates are compatible?
It is compatible with Manfrotto plates and DJI RS 2, RS 3 and RS 3 Pro quick-release plates.
Can the handle be adjusted?
Yes, it has a removable telescopic handle adjustable between 230 and 360 mm.
What is the tilt and pan range?
The panning range is 360 ° and the tilt range is 150 °.
