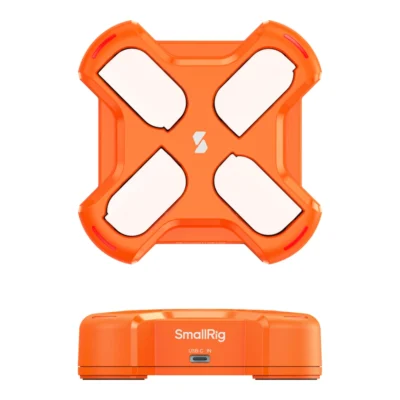

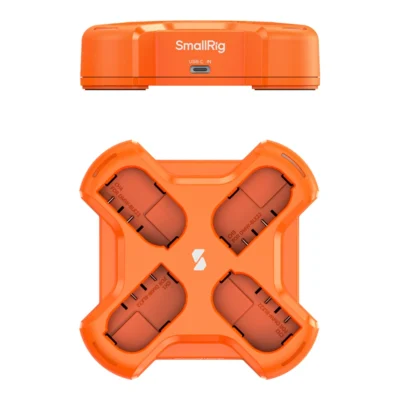

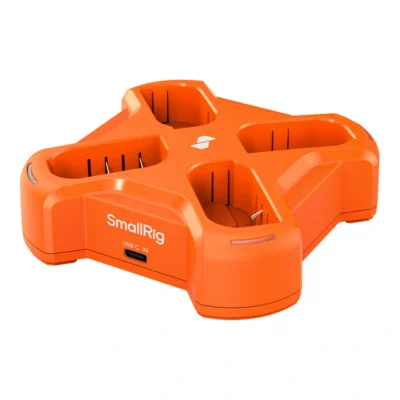

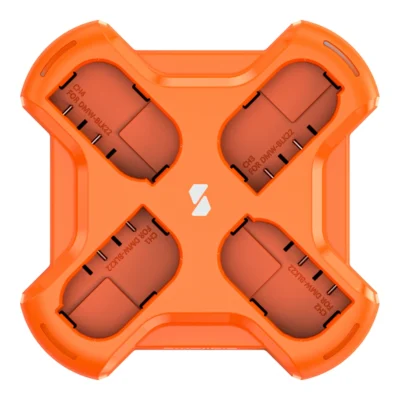

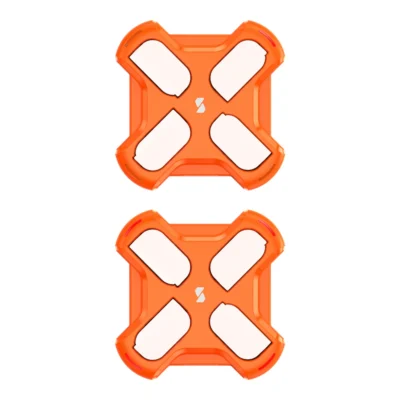

SmallRig 5748 Four-Channel Camera Battery Charger for DMW-BLK22
549 kr
Four-channel USB-C charger for DMW-BLK22 batteries that charges four batteries in 3 hours. It weighs 136 g and supports PD protocol.
In stock
SmallRig 5748 Four-Channel Camera Battery Charger for DMW-BLK22
A four-channel battery charger for DMW-BLK22 batteries used in cameras such as DC-S5, DC-S5K, DC-S5II, DC-S5IIX, DC-S5M2, DC-S5M2X, DC-GH5M2, DC-GH6, DC-GH6L and DC-GH7. Four batteries with a capacity of 2600 mAh are fully charged in 3 hours.
Power supply and charging
The charger uses USB-C with PD protocol and weighs 136 g. The number of active charging channels is determined by the adapter voltage: 5 V activates 1 channel, 9 V activates 2 channels, 12 V activates 3 channels and 15 V activates all 4 channels. If a battery with a higher voltage is inserted, the system prioritises charging it first. The output per channel is 8.4 V⎓0.9 A, 8.4 V⎓1.8 A or 8.4 V⎓2.5 A with a charging limit voltage of 8.45 V. For optimal performance, a USB-C charger with an output of 45 W or higher is recommended.
Safety and accessories
Each output port features short-circuit and overcurrent protection. It holds certifications from FCC, CE, PSE, KC and RCM, and has an operating temperature between 5 °C and 45 °C.

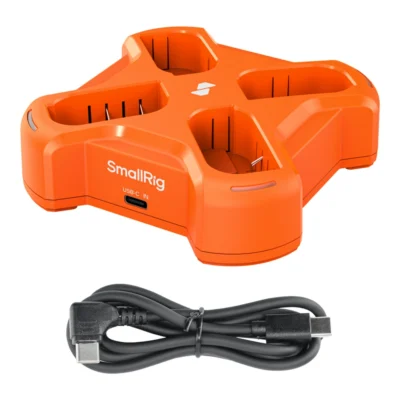

Included in the box
- DMW-BLK22 Four-Channel charger
- 65 W USB-C to USB-C charging cable
- User manual
Specifications
| Battery type | |
|---|---|
| Capacity | |
| Charger type | |
| Compatible with brand | |
| Connections | |
| Format | Camera-specific |
| Manufacturer | SmallRig |
| Power sources | USB-C |
| Warranty period |
How many batteries can be charged at once?
Up to 4 batteries, depending on the input voltage of the adapter.
Which adapter is recommended for best performance?
A USB-C charger with an output of 45 W or higher.
How does the channel activation work?
5 V activates 1 channel, 9 V activates 2, 12 V activates 3, and 15 V activates all 4 channels.
What is the full charging time for four batteries?
3 hours for batteries with 2600 mAh capacity.
