SmallRig 5536 Adapter Plate for NP-F Type Batteries (Supports UPS)
1,199 kr
Battery plate for the NP-F series featuring hot-swap functionality for uninterrupted power and outputs for D-Tap, DC, and USB-C.
In stock
SmallRig 5536 Adapter Plate for NP-F Type Batteries (Supports UPS)

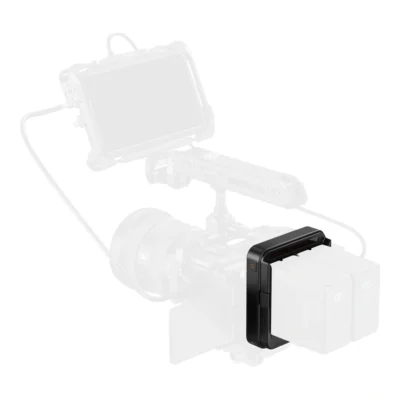

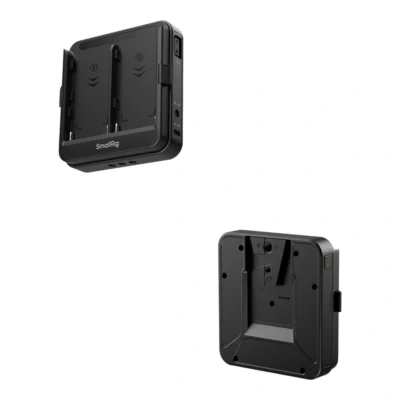

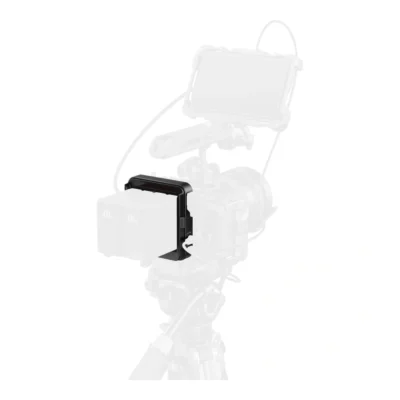

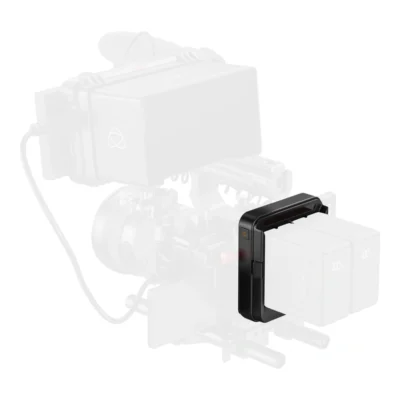

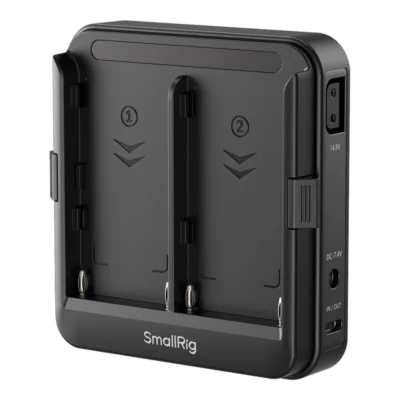

An adapter plate for NP-F batteries that powers equipment via D-Tap, DC, and USB-C. It is compatible with NP-F550, 570, 750, 770, 950, and 970 batteries. The plate can be mounted using a V-mount plate or via the bottom 1/4″-20 threaded holes.
Power supply and charging

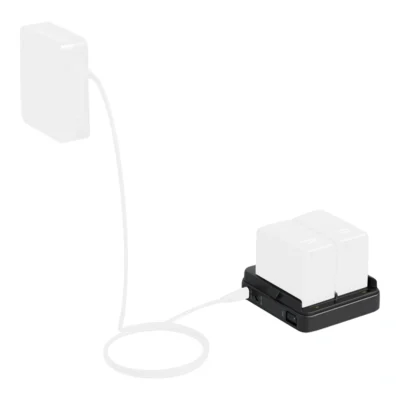

When two batteries are used, one can be replaced without interrupting power to connected devices, ensuring an uninterruptible power supply (UPS). The USB-C port supports a maximum input of 36 W. An integrated intelligent control chip optimises discharge by first emptying the battery with the lowest charge and switching to parallel output when voltage is low.
Control and indication
An independent power switch allows you to check power status and enable output with a single press, while a long press (2 seconds) disables power to all connected devices. Battery status is shown via independent LED indicators for each channel. The plate weighs 148 g.

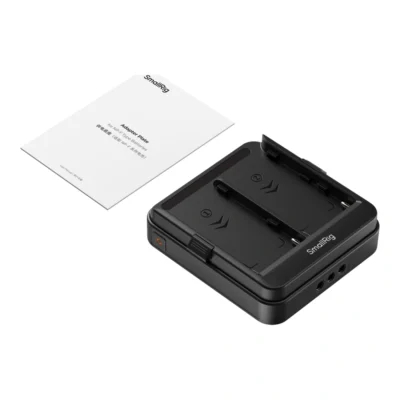

Included in the box
- Adapter plate
- User manual
Specifications
| Charger type | |
|---|---|
| Compatible with brand | |
| Connections | |
| Manufacturer | SmallRig |
| Mount | 1/4″-20 Screws |
| USB ports | |
| Warranty period |
Which NP-F batteries are compatible?
NP-F550, 570, 750, 770, 950, and 970.
How is the plate mounted to a rig?
Via a V-mount plate or the bottom 1/4"-20 threaded holes.
What is the maximum input for the USB-C port?
36 W.
How do you disable power to all connected devices?
By holding the power switch for 2 seconds.
