SmallRig 5399 5" Electric Suction Cup Mount Kit
2,599 kr
Electric suction cup mount with integrated pressure monitoring and a 2000 mAh battery, supporting up to 60 kg for horizontal mounting.
In stock
SmallRig 5399 5" Electric Suction Cup Mount Kit
An electric suction cup mount with a 12.7 cm diameter for attaching cameras to flat surfaces.
The suction cup is made of nitrile rubber and maintains its sealing capability at temperatures between -25 °C and 60 °C. It supports a load capacity of up to 40 kg for vertical or side mounting and up to 60 kg for horizontal mounting. An integrated motor reacts in less than 100 milliseconds for rapid attachment.
Monitoring and power
A pressure monitoring module continuously checks the seal and automatically restores pressure if it drops below 75 %. The built-in 2000 mAh battery provides up to 30 hours of continuous operation. It is charged via USB-C with QC fast charging (5 V/2 A) and reaches full capacity in 45 minutes.
Mounting base and interfaces
The aluminium alloy base features anti-twist 1/4″-20 and 3/8″-16 threaded holes, 3/8″-16 ARRI locating holes, and a NATO rail. For vehicle use, speeds under 80 km/h, loads under 5 kg, and adhesion checks every two hours are recommended.

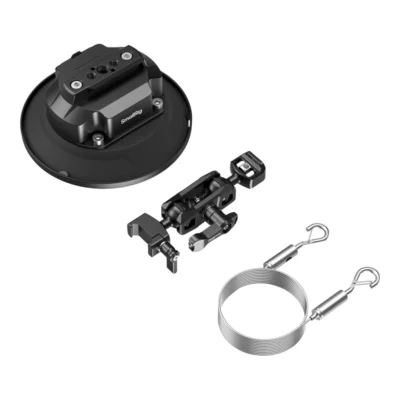

Included
- Suction cup
- Magic arm with ball head
- Safety line
- Dust cover
Specifications
| Capacity | |
|---|---|
| Manufacturer | SmallRig |
| Mount | 1/4″-20 Screws, 3/8"-16 |
What are the load limits for this mount?
It supports up to 40 kg for vertical or side mounting and up to 60 kg for horizontal mounting.
How long does the battery last and how is it charged?
The 2000 mAh battery lasts up to 30 hours and charges via USB-C (5 V/2 A) in 45 minutes.
Can it be used in cold or hot weather?
Yes, it maintains sealing capability between -25 °C and 60 °C.
What interfaces are available on the mounting base?
The base has anti-twist 1/4"-20 and 3/8"-16 threaded holes, 3/8"-16 ARRI locating holes, and a NATO rail.
What are the recommendations for vehicle mounting?
Use the included safety strap, keep loads under 5 kg, maintain speeds below 80 km/h, avoid uneven roads, and check adhesion every two hours.
