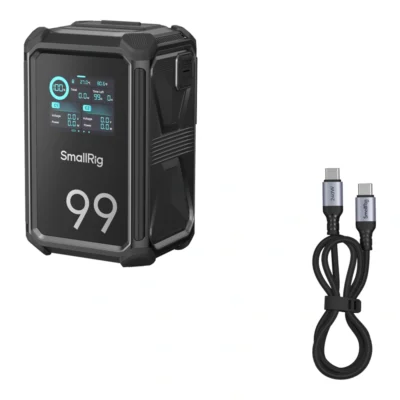

SmallRig 4984 X-Touch Smart Triple-Proof V-Mount Battery X99

SmallRig 4984 X-Touch Smart Triple-Proof V-Mount Battery X99

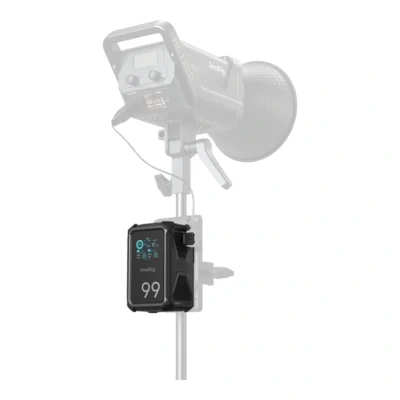

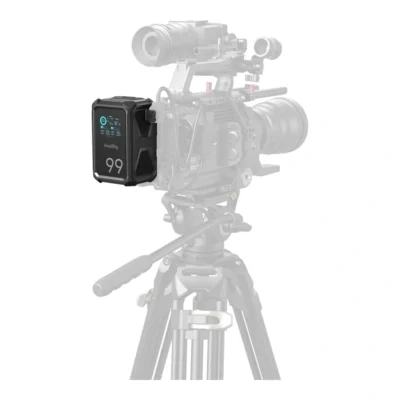

A V-mount battery designed for mirrorless cameras, video cameras, monitors, wireless transmitters, and LED video lights. It features a voltage of 14.54 V and a capacity of 6800 mAh (99 Wh), with a total battery capacity of 27 200 mAh (Cell: 3400 mAh x 8). The weight is 880 ± 10 g including the charging cable.

Ports and charging

Eight power ports are available: one BP port, two D-Tap ports, two USB-C ports, one USB-A port, and two DC ports (8 V and 12 V). The USB-C ports support 100 W bi-directional PD fast charging with values of 5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A, 15 V⎓3 A, 20 V⎓5 A (max 100 W), allowing the battery to be fully charged in two hours. The BP and D-Tap ports provide 16.8 V (max) and 6.8 A. Each port operates on an independent circuit.

Management and protection

A 2.0-inch HD colour touchscreen with a frosted anti-glare surface displays status and controls the outputs. A mobile app allows for battery level monitoring, port control, and location tracking. The housing is constructed from fireproof PC, ABS, and aluminium alloy with an IP54 rating against dust and water splashes. It is drop-resistant up to 1.5 m thanks to eight silicone-protected corners and reinforced edges. For rigging, 1/4″ and 3/8″ threaded holes are included, and a backlight indicator assists installation in low light.
