SmallRig 4946 Advanced Cage Kit for Canon C400
5,499 kr
Rig for the Canon C400 with V-mount mount, 15 mm rods and an extension for the original handle, weighing 1439.5 g.
In stock
SmallRig 4946 Advanced Cage Kit for Canon C400

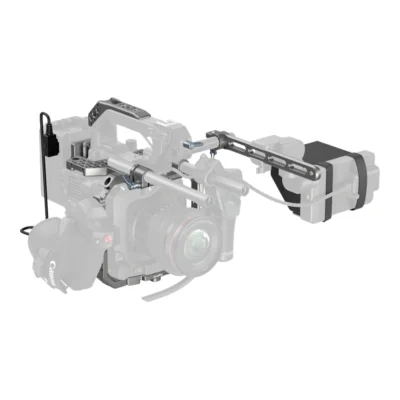

An advanced rig for the Canon C400 that provides a comprehensive system for mounting accessories.
The cage is equipped with 1/4″-20 and 3/8″-16 threaded holes, ARRI mounting holes, NATO rails, cold shoe mounts, ARRI rosettes, double rod clamps, and a QD interface. The baseplate features an integrated groove for ARRI dovetail plates, anti-deflection pins, and 1/4″-20 and 3/8″-16 threaded holes for compatibility with ARRI BP-8 19 mm bridge plates.
Power and rods
A 15 mm dual rod base facilitates the use of wireless follow focus. For power supply, a V-mount mount is included with a cheese plate and an adjustable backplate. Side adjustments on the backplate allow various battery sizes to be used without blocking the HDMI, INPUT, and headphone jacks.
Handle and screen

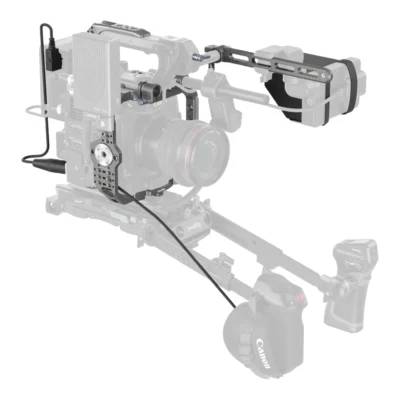

The extension module for the original handle provides increased palm support and additional mounting points for monitors, audio receivers, or magic arms. An included extension cable connects the original handle to the camera when an external monitor or tripod is used. For the screen, there is a 17 mm NATO rail and a sun shade that blocks light for better visibility.

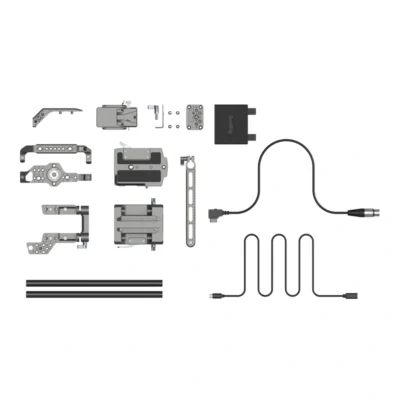

Included in the kit
- Top plate
- Left side plate
- Right side plate
- Baseplate
- Extension module for original handle
- V-mount plate kit
- D-tap to 4-pin power cable
- 15 mm dual rod base
- 15 mm dual rods
- LCD sun shade
- NATO rail for LCD monitor extension
- C to C handle extension cable
- Handle locking knob
Specifications
| Application | |
|---|---|
| Compatible with | |
| Compatible with brand | |
| Manufacturer | SmallRig |
| Rod diameter | 15 mm |
| Warranty period |
Which batteries are compatible with the V-mount mount?
The adjustable backplate with side adjustments ensures compatibility with various V-mount battery sizes.
Does the rig block any camera ports?
No, the side adjustments on the V-mount backplate ensure access to INPUT, HDMI, and headphone interfaces.
Can the original handle still be used?
Yes, the kit includes an extension module and a C to C extension cable to maintain handle control when using a monitor or tripod.
What baseplate standards are supported?
The baseplate is compatible with standard ARRI dovetail plates and ARRI BP-8 19 mm bridge plates.
