SmallRig 2991 Battery Plate V-Mount with Adj Arm
1,099 kr
An aluminium battery plate for V-mount batteries featuring an adjustable arm for mounting on 15 mm rod systems.
In stock
SmallRig 2991 Battery Plate V-Mount with Adj Arm

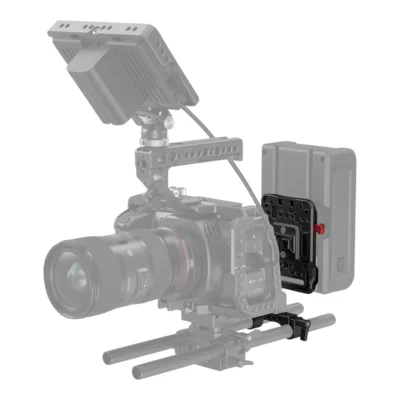

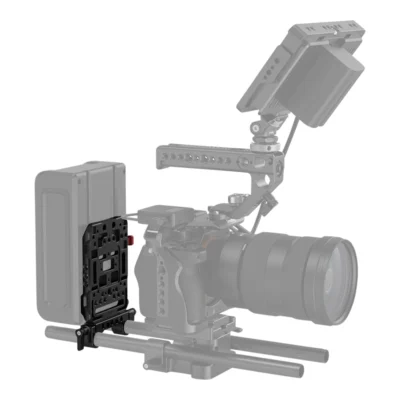

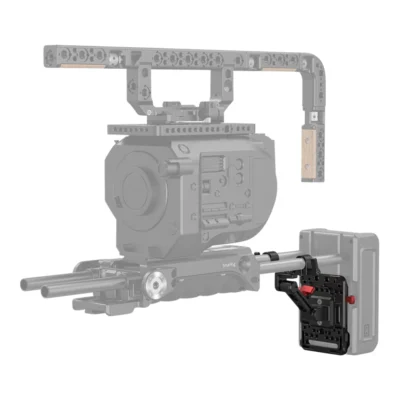

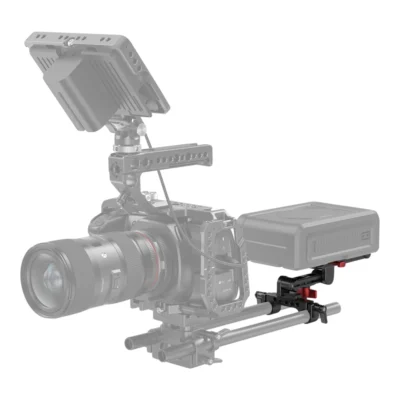

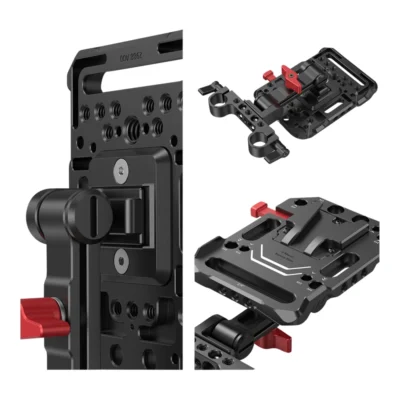

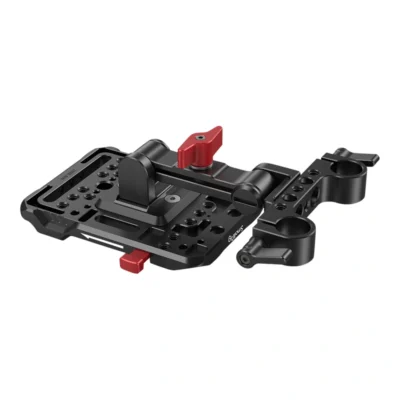

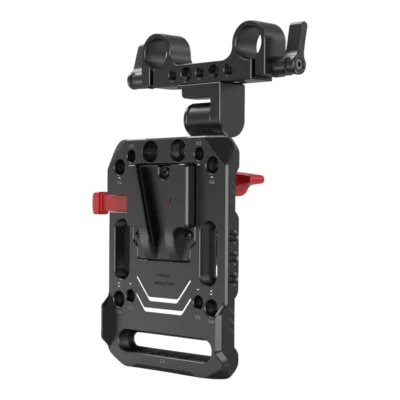

A battery plate for V-mount batteries that is compatible with the Blackmagic URSA mini. The plate is made of aluminium and weighs 310 g. Two stoppers prevent the battery from twisting when attached.
Mounting and connections
The plate is mounted to a 15 mm LWS rod system using the included dual rod clamp with an adjustable arm. For attaching accessories, such as a magic arm, the plate features countersunk threaded holes for 1/4-20″, M3 and M4, as well as an ARRI 3/8″-16 threaded hole. The plate has no power outputs of its own, and no V-Lock male part is included.
- Compatibility: Most V-mount batteries (excluding PAGlink series and Patona Premium BP-190WS)

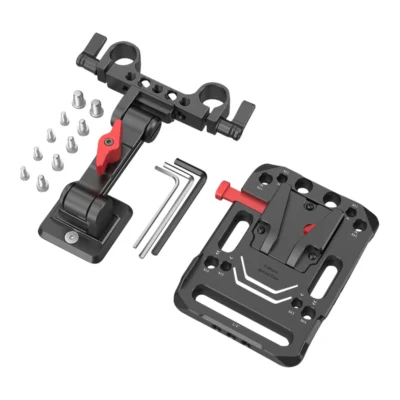

Included in the box
- V-mount battery plate
- Dual 15 mm rod clamp with adjustable arm
- 3 Allen keys
- 2 x 1/4-20″ screws (short)
- 2 x 1/4-20″ screws (long)
- 4 M4 screws
- 4 M3 screws
Specifications
| Application | |
|---|---|
| Colour | Black, Red |
| Compatible with brand | |
| Dimensions | |
| Manufacturer | SmallRig |
| Material | |
| Mount type | |
| Rod diameter | 15 mm |
Does the plate provide power to the camera?
No, there are no power outputs on the plate.
Which batteries are not compatible?
PAGlink series V-mount batteries and Patona Premium batteries for BP-190WS are not compatible.
How is the plate attached to the rig?
It uses a dual 15 mm rod clamp with an adjustable arm for LWS rod systems.
Is a V-Lock male part included?
No V-Lock male part is included with the plate.
