SmallRig 2646 Cage for Panasonic GH5, GH5 II & GH5S
999 kr
Form-fitting aluminium cage for Panasonic GH5, GH5 II and GH5S featuring a NATO rail, cold shoe and multiple mounting threads.
Out of stock
SmallRig 2646 Cage for Panasonic GH5, GH5 II & GH5S
A form-fitting full cage designed for the Panasonic GH5, GH5 II and GH5S.
Mounting and stability

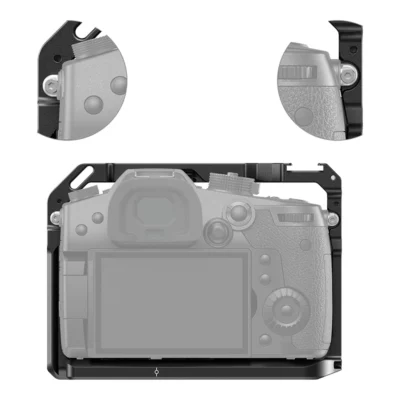

The cage is secured with a 1/4″-20 screw and locked with M2.5 threads on both sides to prevent twisting. The ring attachments on the sides of the camera must be removed before mounting. A flat head screwdriver for the camera screw is stored in the bottom of the cage.
Accessory mounts

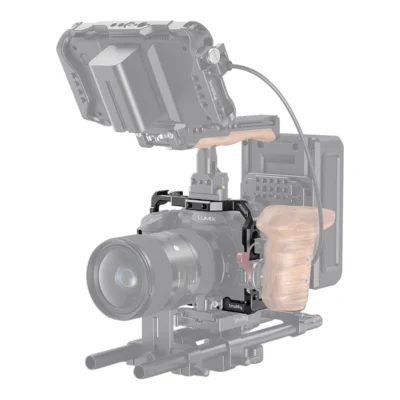

Multiple 1/4″-20, 3/8″-16 and ARRI 3/8″-16 threads are available for accessories such as the Top Handle 2165, Side Handle 2093 and Monitor Mount 2348. An integrated cold shoe for microphones and lights is located on top, while the left side features a NATO rail for the NATO Handle 2187. The bottom includes a 1/4″-20 threaded hole for attaching 15 mm Rod 915 systems for follow focus. Strap mounts are provided on both sides for carrying straps. The HDMI cable clamp 1822 and DMW-XLR1 Helmet Kit 2367 HTS2367 are compatible but sold separately.
The cage is made of aluminium and measures 112 x 152 x 66 mm. It weighs 190 g.

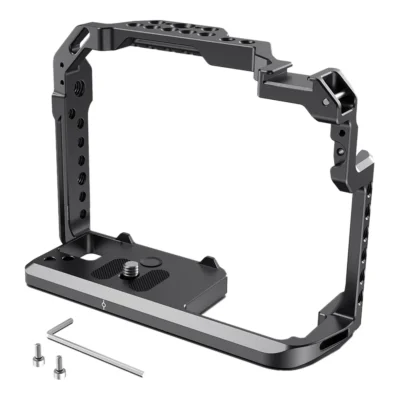

Included in the box
- Cage
- 2 x M2.5 screws
- Allen key
Specifications
| Application | |
|---|---|
| Compatible with | |
| Compatible with brand | |
| Dimensions | |
| Manufacturer | SmallRig |
| Material | |
| Rod diameter | 15 mm |
| Warranty period |
Which cameras is this cage compatible with?
It is designed for the Panasonic GH5, GH5 II and GH5S.
Does it include a way to attach a follow focus?
Yes, there is a 1/4"-20 threaded hole in the front bottom for attaching 15 mm Rod 915.
How is the camera secured to prevent twisting?
It uses a 1/4"-20 screw and M2.5 threads on both sides.
What is the material and weight?
It is made of aluminium and weighs 190 g.
