Feelworld Video Mixer L4
7,899 kr
Live streaming video mixer with five inputs, a built-in 10.1″ touchscreen, and support for 1080p60 via USB 3.0.
In stock
Feelworld Video Mixer L4

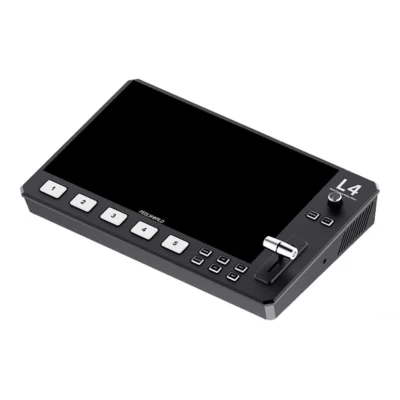

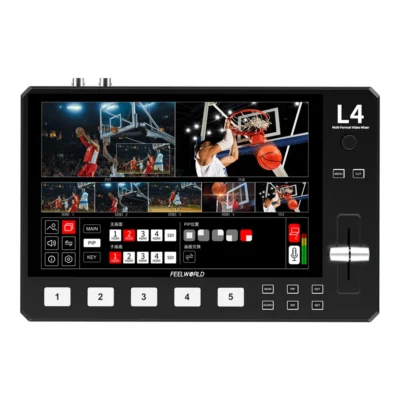

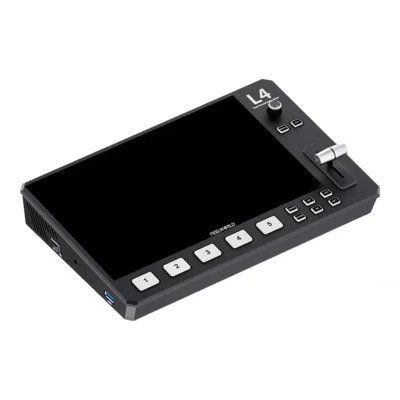

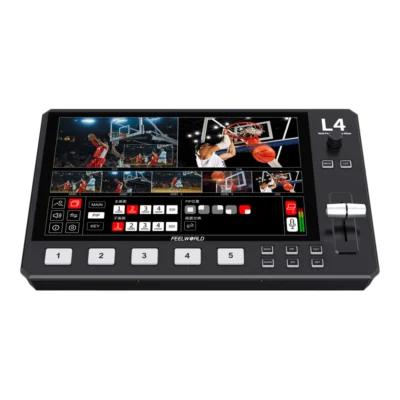

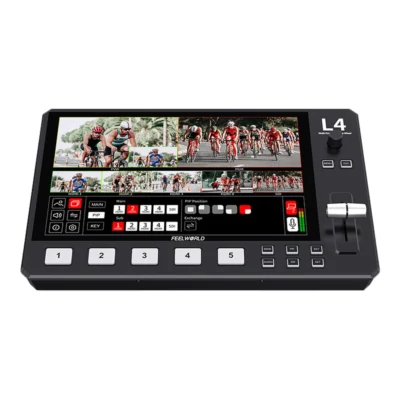

A video mixer for live broadcasting featuring a built-in 10.1″ touchscreen, controllable via the display, a T-bar, or LED buttons with tally indicators. This 5-input video production switcher includes four HDMI ports and one SDI port, supporting resolutions up to 1080p60.
Monitoring and video effects
The touchscreen displays up to seven images simultaneously, including the five inputs and previews for program and next clip. It offers configurable picture-in-picture modes, 13 transition effects, and chroma keying. Program and preview video can also be sent via HDMI and SDI outputs, with HDMI supporting 4-way multiview.
Audio and connectivity

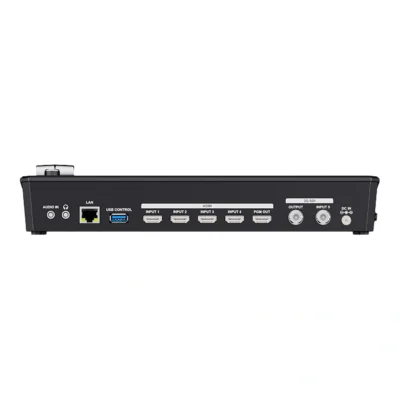

Audio mixing supports two channels using embedded audio from HDMI and SDI or an external source via a 3.5 mm stereo input. A 3.5 mm output is available, and the unit provides 2-channel embedded audio output via HDMI and USB-A. For streaming to a computer and software, USB 3.0 is used, supporting up to 1080p60. The device includes an RJ45 LAN input/output and can be controlled via an app for Android and iOS.
Construction and power
The housing is made of aluminium and features a built-in fan that activates automatically. Power consumption is 27 W, powered via a 12 VDC input. It operates within a humidity range of 10 to 85%. Dimensions are 29.02 x 18.95 x 5.57 cm and the weight is 1.48 kg.
Included in the box
- L4 HDMI Livestream Switcher with 10.1″ LCD monitor
- Power adapter
- USB cable
Specifications
| Connections | |
|---|---|
| Manufacturer | Feelworld |
| Media type | Video |
How many video inputs does the device have?
It has 5 inputs: 4 x HDMI and 1 x BNC (HD-SDI).
What is the maximum resolution for streaming via USB?
It supports up to 1080p60 video via USB 3.0.
Can it be controlled remotely?
Yes, it is compatible with mobile apps for Android and iOS.
What are the audio input options?
It uses HDMI and SDI embedded audio or a 3.5 mm TRS stereo analog input.
