Feelworld Video Mixer L2 PLUS Multi Camera

Feelworld Video Mixer L2 PLUS Multi Camera

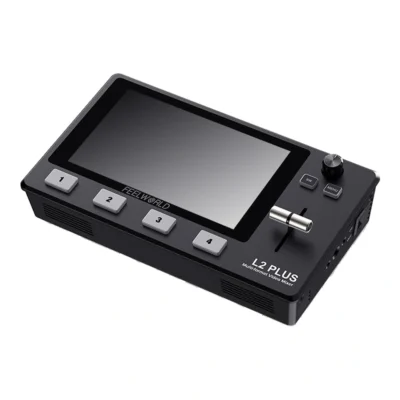

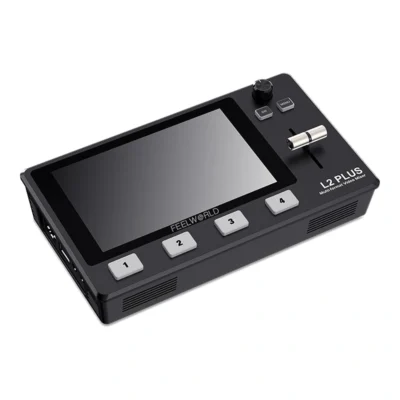

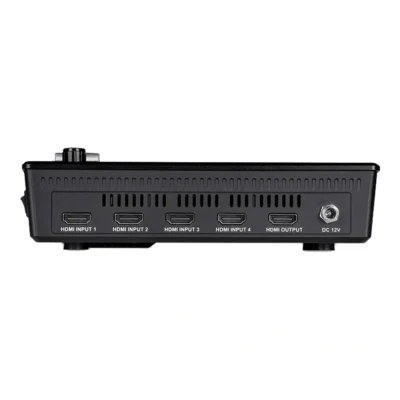

A portable live production switcher designed for multi-camera setups, operated via a 5.5-inch LCD touch screen. An upgrade from the LIVEPRO L1, it features four HDMI inputs supporting resolutions up to 1080P@60 and a USB 3.0 connection for live streaming.

Image Management and Effects

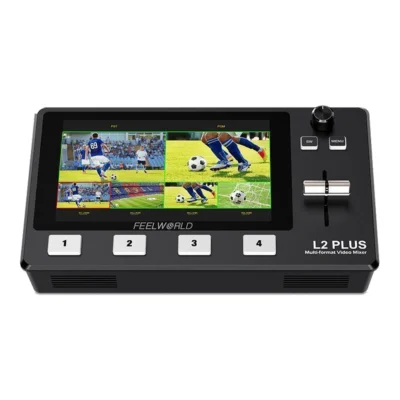

The touch screen provides a real-time six-picture preview consisting of four input sources, a PST preview, and the PGM output. Users can choose from 15 transition effects and 9 PIP modes. A physical T-Bar on the panel is used to switch signal sources and effects. Built-in chroma key allows for green or blue screen effects, and the LOGO overlay function enables the addition of graphics.

Camera Control and Audio

The device can control up to 8 cameras supporting the VISCA protocol, allowing for the adjustment of rotation, zoom, and focus. Camera positions and zoom settings can be saved in memory. Audio is handled via a 3.5 mm input for active microphones and a 3.5 mm output for headphones or external speakers, with AFV or Line In modes available.

Connectivity and Mounting

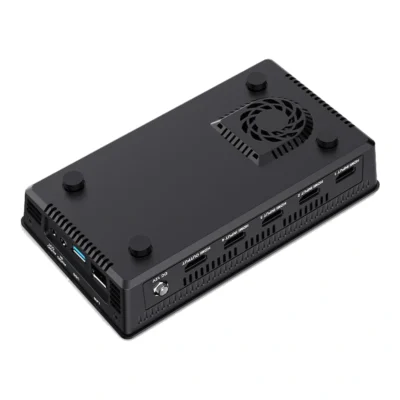

An external display can be connected via the HDMI output to monitor PGM, PST, and HDMI inputs, with the ability to switch between 6-Picture PVW and PGM. The unit includes a built-in cooler with three adjustable fan speeds. For mounting, a standard 1/4″ screw hole is provided for tripods. Remote control is possible via a PC or smartphone app.
